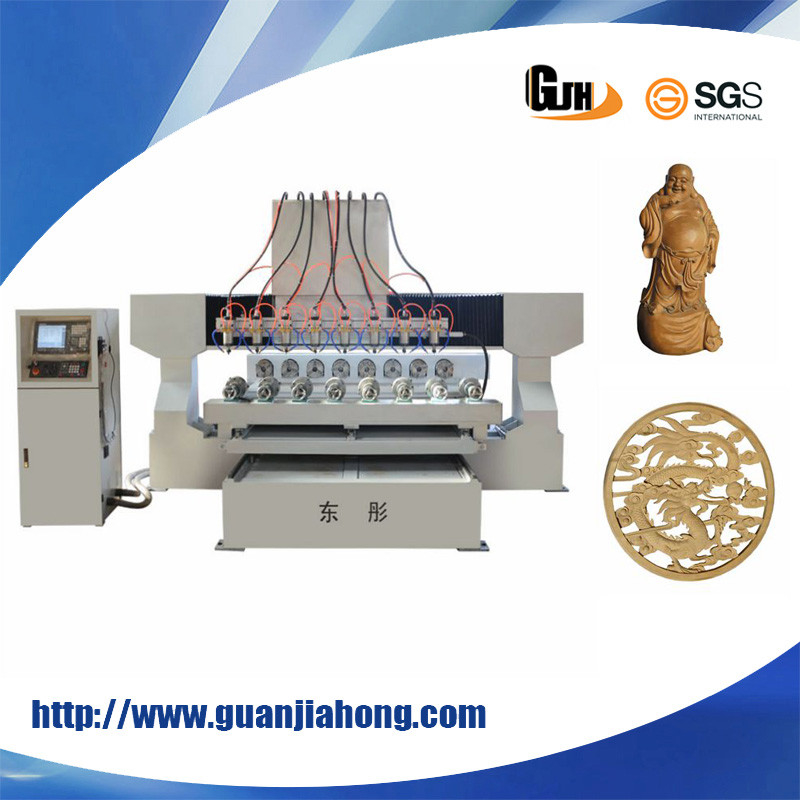

Woodworking 4 axis cnc router machine for 3D engraving
Feature:
1. Machine DT2010-6 is specialized in processing three-dimensional (3D) and complicated process ;such as 360 degree rotary for engraving human body, Sculpture, craft, furniture, jade, ceramic, clay etc.
2. The lathe bed has good stiffness and non-deformation ,which is made up with thick-walled square pipe by welding process, table-moving, and stabilized by relief of internal stress treatment later on.
3. Screw drive, servo motor, high power and high precision.
4. Four-axis control system : Weihong 74A series with hand wheel.
5. Spinner consists of holding chuck and dead center whose concentricity between 0.05-0.1MM which
6. All specification can be customized.
NO | Performance index | Performance index | Parameter | Optional |
1 | Working area | X axis | 1000mm | 500-3000mm |
Y axis | 1000mm | 500-2500mm | ||
Z axis | 300mm | 200-1000mm | ||
2 | Turning diameter | 200mm | 260-1200mm | |
3 | Accuracy | Processing precision | 0.02mm | |
Re-positing precision | 0.02mm | |||
4 | Drive mode | X axis | Screw | |
Y axis | Screw | |||
Z axis | Screw | |||
5 | Speed | Max travel speed | 15000mm/min | |
Max engraving speed | 8000mm/min | |||
6 | Spindle (air-cooling) | Spindle power | 2.2KW | 1.5KW—5.5KW |
Spindle speed | 0—24000r/min | |||
7 | Running mode | servo | ||
8 | Working voltage | AC220-380V/50HZ | ||
9 | Machine size | 2000*3000*2500 | ||
10 | Operating system | Original weighong74A | ||
11 | Net weight | 2200KG | ||
All specification can be customized | ||||
If you have specific requirement for woodworking 4 axis cnc router machine, customization is available.
