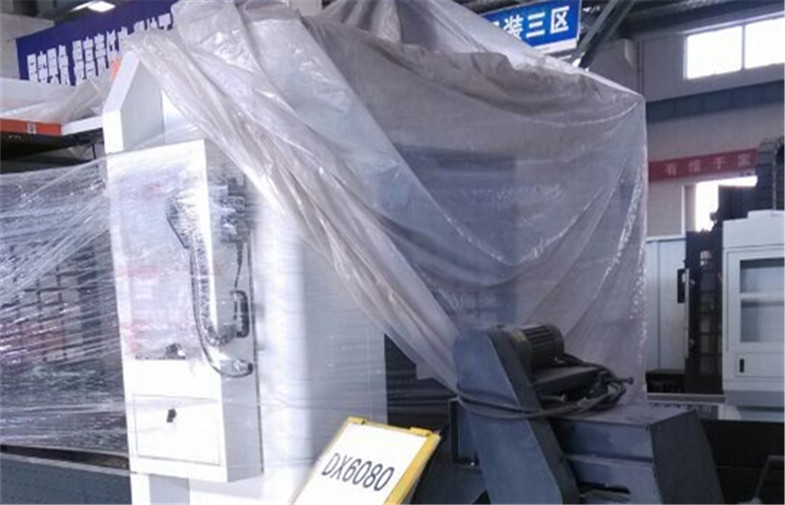

3 Axis CNC Horizontal Machining Machine Milling with Adopt Electric Spindle
Quick Detail:
Description:
The engineers of the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after-sale service in time and professionally.
Applications:
Widely used in mold , shoemaking , trademark , leather , watchmaking , mint , hardware industry and so on . In particular the need for need for high-speed machining of metals .
Specifications:
1. The main technical parameters
|
Specifications |
Unit |
DX6050 |
|
Work table size (L*W) |
mm |
600×500 |
|
Max.load capacity of work table |
kg |
250 |
|
T-slot(No.*slot width*spacing) |
mm |
5-16×100 |
|
X axis travel |
mm |
600 |
|
Y axis travel |
mm |
500 |
|
Z axis travel |
mm |
280 |
|
Distance from work table surface to spindle and face |
mm |
30-330 |
|
Distance between two columns |
mm |
660 |
|
Spindle taper |
ER |
ER32 |
|
Spindle speed |
rpm |
24000 |
|
Spindle power |
kw |
5.5 |
|
Spindle driving type |
step |
Hidden style |
|
Cutting feed speed |
m/min |
10 |
|
X.Y.Z rapid feed speed |
m/min |
15 |
|
X. axis position accuracy |
m/min |
0.006 |
|
Y axis position accuracy |
m/min |
0.006 |
|
Z axis position accuracy |
m/min |
0.005 |
|
X axis reposition accuracy |
m/min |
±0.005 |
|
Y axis reposition accuracy |
m/min |
±0.005 |
|
Z axis reposition accuracy |
m/min |
±0.003 |
|
Dimension (L*W*H) |
mm |
2200×1800×2100 |
|
N.W. |
T |
3.6 |
2. Standard accessories
1. 16 tools bamboo hat ATC
2. A full set of lubrication system
3. A full set of coolant system
4. Japan NSK bearing
5. German R+W coupling
6. Taiwan spindle
7. Taiwan pressure cylinder
8. Taiwan LNC controller ( Fanuc, Siemens , Mitsubishi )
