Place of Origin:
China
Brand Name:
TOPSTAR
Certification:
CE
Model Number:
MD-80S-100-79-16TR
Contact Us

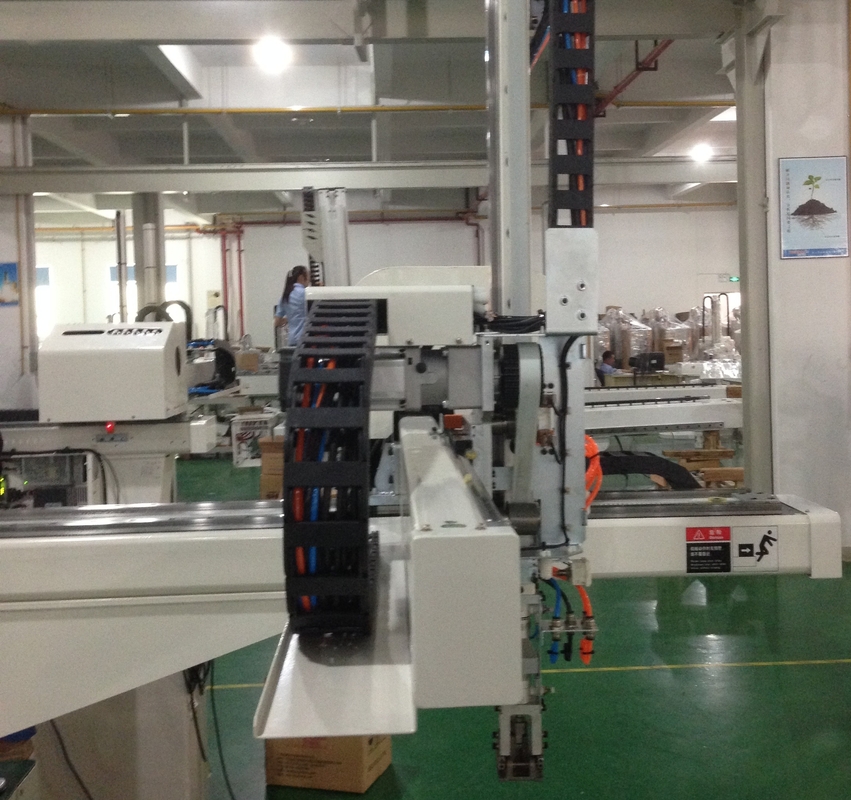

5 Axis Cnc Servo Motor Manipulator For Scoop Machine Arburg Injection Molding Machine
Application products: Robot arm is suitable for plastic parts like plastic cup, disposable bowl, cup, forks and knives, PVC pipe, car bumpers, sprue, mobile phone case, socket, telephone, helmet, air condition shell, toothbrush, PET bottle embryo etc.
High Performance Imported Ac Servomotor
Working with high precise linear guide way and imported steel wire belt driven result in high speed, low noise,
precision position at ±0.1mm.
Control System
1. Micro-computer control system was programmed & developed by TOPSTAR, write the program with
more safety protection functions to provide safeguard for operator and IMM in accordance with
insufficient safety protection for domestic IMM situation. In addition, we also can write the special
program to meet customers’ special requirements for matching the various molds and grippers.
2. Palm controller incorporate, changeable Chinese/ English screen page, easy learning.
Multi-functions and programs are provided for selection, automatically detecting, displaying and
recording the malfunctions, conveniently maintain and problem solving.
Structural Units
High rigidity structure design, stable construction, low vibration, abiding and long service life.
Standard Function
Packaging Point 1~256
Packaging Motion Up to 200
Ejector Link
Defective Product Reject Circuit
Posture Control during Traverse
Posture Midway at Release Side
Products Confirm in Chuck
Vacuum Sensing Circuits 1
Midway Runner Release
Crosswise Product Extract Posture 1
Crosswise Product Extract Posture 2
Delayed Arm Descent
Extract at Fixed-side
Delayed Traverse
Free Crosswise Servo
Posture Control during Descent
Runner Release within Mold
Module Memory (50 min)
Conveyor Even Moving
Specifications:
Model | MD-80S-100-79-16TR |
Main Arm Stroke |
1000mm |
Main Arm Crosswise Stroke | 790mm |
Traverse | 1600mm |
Max.Power Consumption | 2.3KW |
Max.Load | 5kg |
Weight | 221kg |
Air Consumption | 3.68NL/Cycle |
Precision | +-0.1mm |
Voltage | AC220V/1P/50HZ |
Driven System |
AC servo driven motor |
Working Air Pressure |
0.5~0.7MPa |
Robotic Arm Application
