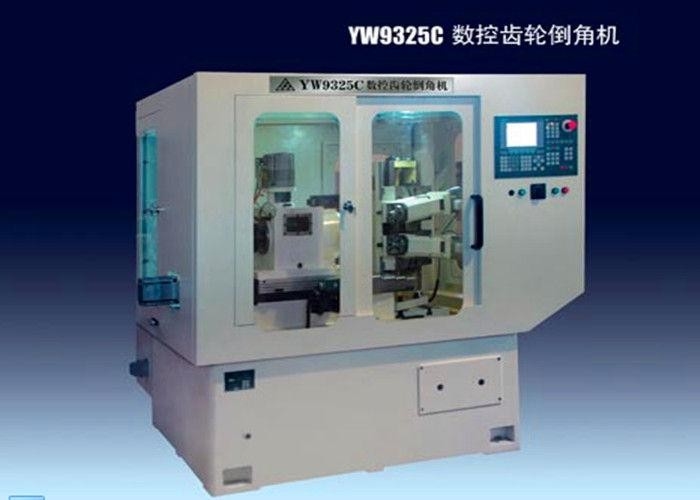

10kva CNC Gear Tooth Chamfering Machine, 2-axis CNC Machine

10kva CNC Gear Tooth Chamfering Machine, 2-axis CNC Machine:

Quick Details:

This is a 2-axis CNC machine designed primarily for chamfering the shift gears in the gear boxes used for automobiles. Disc-type gears and ring gears with sharp corners and round corners can be accommodated on this machine. Carbide alloy cutters are mechanically clamped on the machine. The machine is modular-designed and horizontally arranged, and equipped with a full-enclosure. The working principle of the machine is intermittent tooth to tooth chamfering. The machine equipped with a SIEMENS 802D 2-axis CNC system chamfers simultaneously the teeth on both sides symmetrical about the center of the gear being machined with two face milling cutters. The feed motion of the machine is performed by the workpiece. After one tooth is finished, the workpiece relieves and indexes for chamfering the next tooth. Characterized by high efficiency, simple cutter, optimized machining quality, and easy adjustment and operation, the machine can meet the needs for both small lot trial production of new products and mass production.

Specifications:

Company Profile:

Heng Yong company gathered many experienced experts. This team is lead by people have over decades of experience, and filled with young, energetic engineers. With strong research and developing ability, our company put extraordinary effort on developing complete sets of gear machinery. Now we are able to provide our customer the main products as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The company focus on developing heavy-duty, large CNC gear machinery, which are urgently needed by the government and makes industrialize as soon as possible, provide a great variety of advanced gear machinery to the market. The company is using the leading 3D designing software for developing and designing. The company combines producing with research and development by Cooperating with TIANJIN University and other colleges for many years.
