Place of Origin:
Wenzhou City,Zhejiang,China
Brand Name:
HENGTAI
Certification:
CE,ISO9001:2008,ISO14001,GB28001
Model Number:
HB series
Contact Us

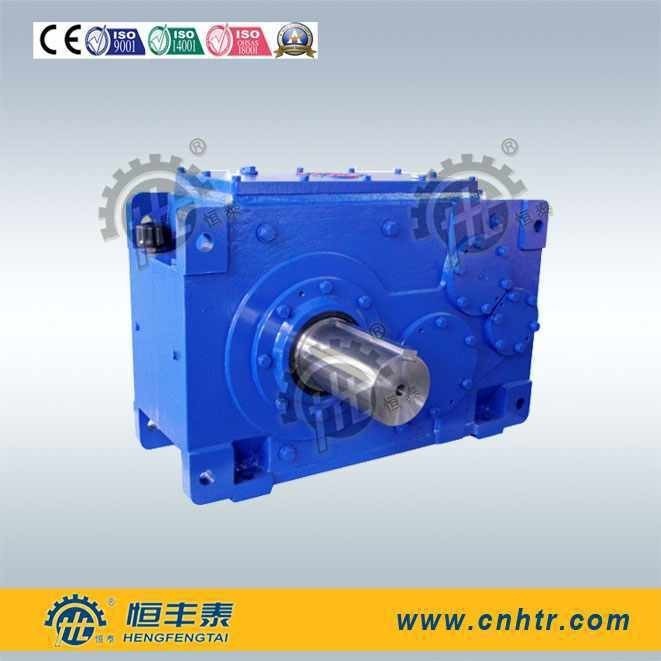

Sand Washer Helical Reduction Gear Boxes H2SH7 Bevel Hollow Shaft
Material:
Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade alloy with carburization,
surface hardness: 58-62HRC,
center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6,
surface finish: 0.8,
carburization depth: 0.6-1.5mm
Bearing: 42CrMo
Warranty: 18 months
Specification:
|
Series |
Transmission Ratio (i) |
models |
|
H1 |
1.25-5.6 |
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19 |
|
H2 |
6.3-28 |
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,
H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26
|
|
H3 |
25-112 |
H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,
H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26
|
|
H4 |
100-450 |
H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,
H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26 |
