Place of Origin:
Slovakia
Brand Name:
MicroStep
Certification:
CE
Model Number:
DRM
Contact Us

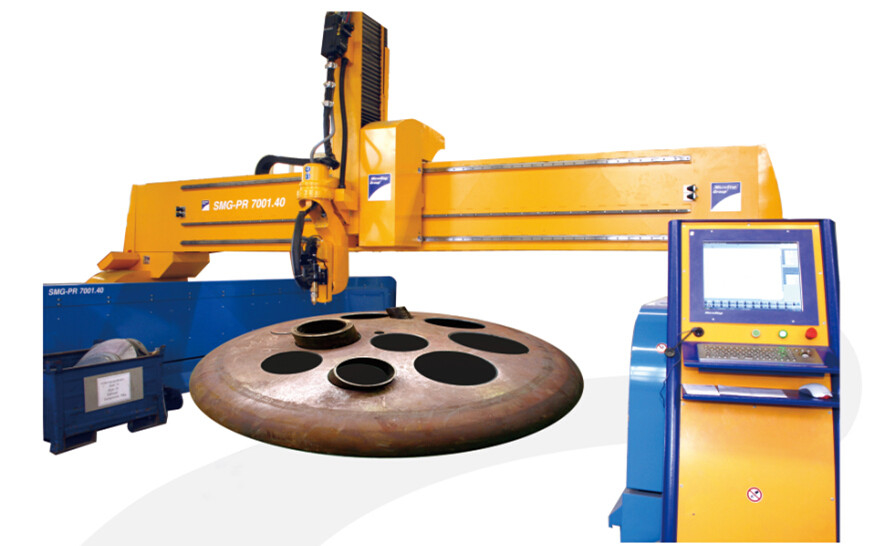

Drm CNC Plate End Socket Cut Rotary Plasma Beveling Machine Used In Pressure Vessel
Specifications:
|
Working length |
3000 - 30000 mm |
|
Working width |
1500 – 8000 mm |
|
Max. number of tool stations |
4 |
|
Max. thickness of material cut by plasma |
according to a plasma source |
|
Max. thickness of material cut by oxyfuel |
200 mm |
|
Positioning speed |
up to 30m/min (depends on version) |
|
Positioning accuracy |
± 0,06 mm according to DIN 28 206 |
Description:
DRM-D is a heavy-duty CNC cutting machine designed for a wide range of dome, sheet and pipe applications. Its robust gantry allows a vibration-free operation of heavy equipment like automatic oxyfuel triple torches or the special 90° plasma rotator with a 1000 mm stroke of Z-axis. Along with the full range of sheet and pipe cutting possibilities, DRM-D offers special applications on domes like trimming, separation cuts, cutting of diverse openings, welding seam preparation and cutting of domes placed upside down.
Applications:
Mainly used in pressure vessel and container industry, such as tube to tube, tube to plate, tube to end socket beveling & cutting.
DRM is a heavy duty cutting & drilling model, used specially for end socket, pipe profile and steel plate cut. Such as end socket trimming, separated cut and different beveling.
Optional functions:
Plasma torch with tilting at any angle.
Plasma rotary beveling.
CNC drilling tools.
Automatic calibration of rotary beveling head.
Automatic plate alignment.
Laser scan to profile pipe and end socket.
CCD digital camera.
