Place of Origin:
China
Brand Name:
XINJE
Certification:
CE, ISO9001
Model Number:
DS2-21P5-AS2
Contact Us

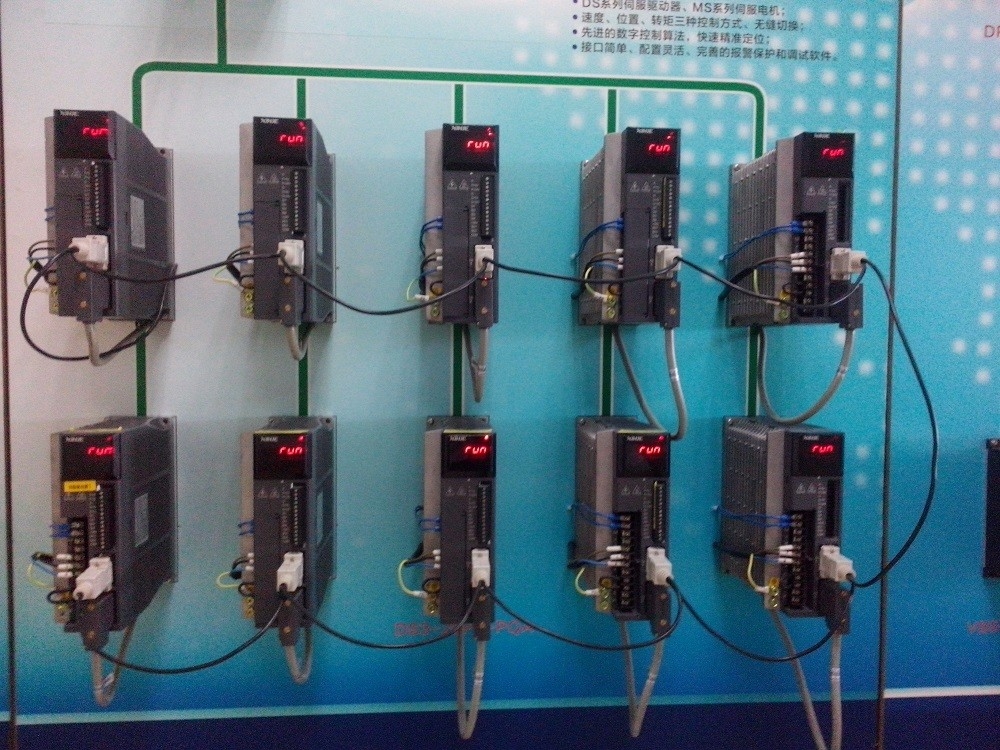

5V OC Input PLC Control AC Servo Drive , CNC Servo Motor Controller
Quick Detail:
Power 1.5kW
Rated speed 3000rpm
DS-AS2 series servo drive
Three control modes: speed, position, torque
Power supply: single phase AC 220V
5V OC input
Description:
1. Three control modes: position, speed, torque. Each two modes can switch.
2. Up to 400Hz high speed response, max power 1.5kW
3. 5 channels digital input, 3 channels digital output
4. 2 kinds of pulse input
5. Two communication ports: RS232
6. Position command input mode: 5V OC input
Specifications:
|
Types |
DS2-21P5-AS2 |
|
|
Suitable motor |
Type MS- |
MS-110ST/130ST |
|
Radius Speed (rpm) |
Rated 3000 |
|
|
Suitable encoder |
Incremental encoder, 2500 ppr |
|
|
Suitable motor max capacity [kW] |
1.5 |
|
|
Continuous output current [A rms] |
6 |
|
|
Max output current [A rms] |
18 |
|
|
Input power supply |
Single phase AC 220V, 50/60Hz |
|
|
Control mode |
Three phase or single phase full wave rectification IGBT PWM control, sine current drive mode |
|
|
Using condition |
Temperature |
0～+50 ℃/-20～+85 ℃ |
|
Humidity |
Under 90％RH (no condensation) |
|
|
Vibration resistance/impact resistance |
4.9m/s2 / 19.6m/s2 |
|
|
Structure |
Foundation installation |
|
Applications:
DS series servo drive can communicate with PLC and HMI. It has three control modes. Position mode can control the servo drive by external pulse or internal position parameters. Speed mode can control the servo drive by analog voltage, internal speed parameters or pulse frequency. Torque mode can control the servo drive by analog voltage or internal parameters.
