Zinc Alloy Die Casting Mold , Aluminium Alloy Die Cast Moulding Maker

Zinc Alloy Die Casting Mold , Aluminium Alloy Die Cast Moulding Maker

die casting mould

die cast molding

Place of Origin:

China

Brand Name:

Hitop

Certification:

ISO

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 1-100000
Packaging Details
wooden box for mold and tooling , paper cartons for injection parts
Delivery Time
depends on the mold size, 20-80 days
Supply Ability
900 sets of molds per year
Product Description

LKM Zinc Alloy Die Casting Mold  , Aluminium Alloy Die Cast Moulding




Part Name
Material Dimension  mm Cavity Cavity/Core Mold standard Gate type Remarks

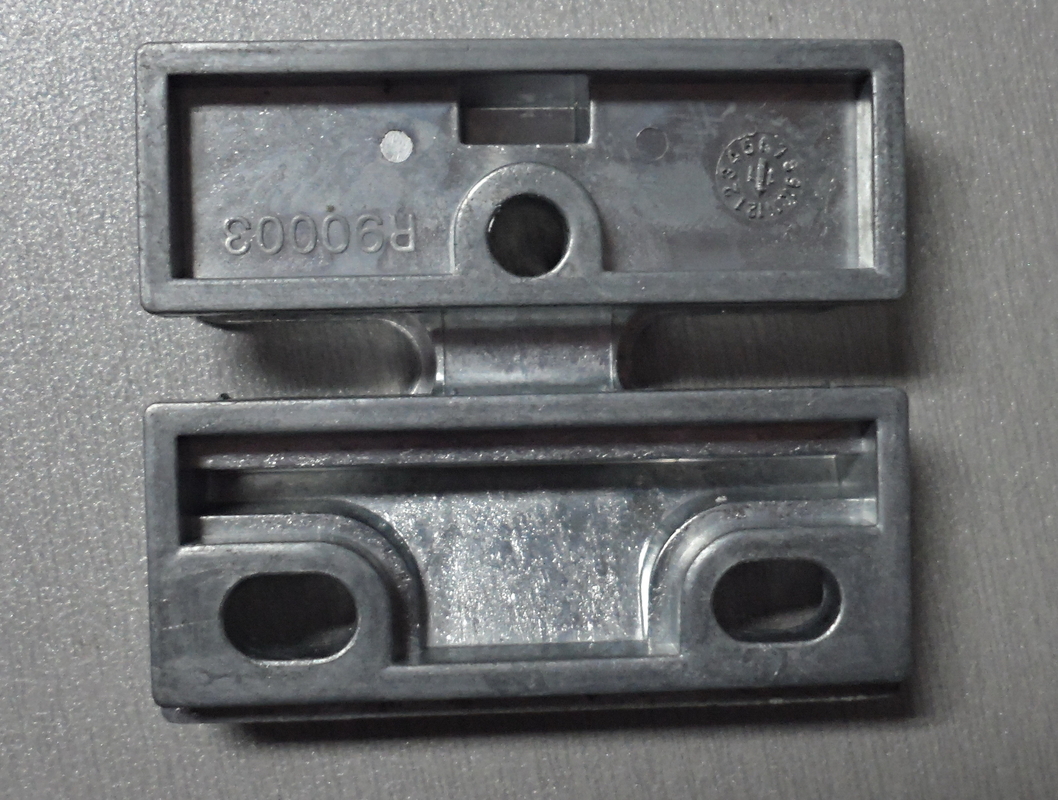

Die casting part ZP5 45*46*16 1+1 8407(HRC-48-52) LKM Edge gate 2 sliders



With the help of CMM, projector,  and some other measuring tools and equipments and team members conscientiousness,we can guarantee the mold quality by inspecting in-coming material ,manufacturing process and samples.





Our main QC Process are as follows :


1. Customer’s Mold Specification Sheet Check
2. Mold Design Control
3. Mold Steel Hardness Inspection
4. Mold Electrodes Inspection
5. Mold Core and Cavity Steel Dimension Inspection
6. Mold Pre-Assembly Inspection
7. Mold Trial Report and Samples Inspection
8. Final Full Inspection prior to shipment
9. Mold Package Inspection

10.With more than 10 years of manufacturing experience.





1. Well mold design is half of success . Our engineering department have 25 experienced mold designers utilizing the latest design software such as

2D drawing : Auto CAD , E –drawing

3D drawing : Pro-E ,UG, Solidworks (wildfire version) ,Mastercam

Mold Flow Analysis





2. We have a Project Management team to follow up the mold making :

Time Schedule: We will provide the time schedule every week to report the mold progress.

Dimensions report: Dimensions report will be submitted to customer together with the trial samples.

Heat Treatment and Steel Certificate









Hitop Mold is the one stop shop mold maker in China with over than 15 years mold making experience. Hitop Mold offers integrated capabilities in design ,prototyping ,mold making ,injection molding ,die-casting and simple assembly to take your initial concept to commercialization .



Let Hitop Mold Your Plastics and Alloy Today!





Our factory



AgieCharmilles Precise EDM

Zinc Alloy Die Casting Mold  , Aluminium Alloy Die Cast Moulding Maker 0



EDM



Zinc Alloy Die Casting Mold  , Aluminium Alloy Die Cast Moulding Maker 1



CNC

Zinc Alloy Die Casting Mold  , Aluminium Alloy Die Cast Moulding Maker 2
