Place of Origin:
China
Brand Name:
Gemte
Certification:
ISO9001:2008,ISO14001:2004
Model Number:
5712
Contact Us
Specifications
injection mould for air conditioner
2)High quality for mould
3)different hot runner
4)standard mould base

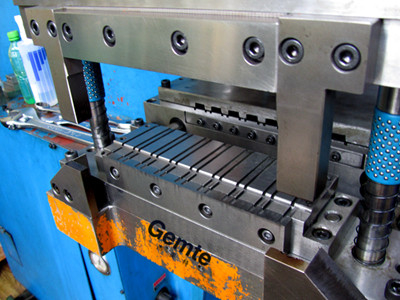

Gemte high precision injection mould for air conditioner,household appliance plastic injection mould
Mould base :
American Standard: ASTMB85-96, ASTMB85-98, ASTMB179-96, ASTMB597-98.
Japanese Standard: JISH2118:2000, JISH5302:2000.
German Standard: DIN 1725-86.
French Standard: NF THE A57-703-84.
European Standard: EN 1706:1998.
Chinese Standard: GB/T15115-94, GB/T15114-94, HB5012-86.
NON-standard depend on your requirement
2.Steel hardness: determined by material
3.Product Material: variously,such as copper, stainless steel, carbon steel, aluminum, plastic,rubber etc depend on your requirement
The Material Classification Of The Mould Designing & Manufacturing
(1). Metal Material Aluminum, Zinc, Steel, Copper, Brass, Magnesium, Magnesium alloy, Stainless steel, Sheet metal, Bronze, Aircraft Alloys - Steel, Nickel/Super Alloys, Carbon Steel, Hi-Temperature Alloys, Medical Alloys, Glass Sealing Alloy
(2). Engineering Plastic PEEK, PVDF, CPVC, UPE, POM-ESD, PPS, PEI, PSU, PES, PPO, PTFE, PETP, PBT, PET, POM, PC, PAPAI, PBI, PI, PVC, ABS, PP, PE, PU, PA
(3). Anti-static Material PEEK, POM, PC, PVC, ABS, Silicon sheet, Nylon board, Organic glass
(4). Insulating Material Bakelite, Silicon, Epoxy, Resin, Cold impact
(5). PA+GF Material PEEK, PPS, PEI, PETP, PBT, PET, POM, Nylon
4. Design software: UG PRO/E CAD CAXA
5. production equipment : milling machines, CNC lathe, cylindrical grinders, deep hole drilling machine, surface grinders, EDM machine, CNC machine, wire cut machine,milling centre,laser cutting machine,griding machine,drilling machine,RHC heat treatment,chamfering machine,CNC wire cutting,traditional milling machine,quality control machine,speed walking machine, Digital control machining centre ETC
height gauge,microcalliper,profile projector,tool microscope, comparator are the main inspection equipment
6.Mould life: 5,000,000 shots
7. Mould delivery time : 7-60days for first test mould
Process
1.R&D | We support customer R&D .Make the files or improve the design if you needed |
2.Negotiation | The quality ,price, material, cavity,delivery time, payment item ,ect. |
3.Place an order | According your own design or you chooses our design. |
4.Mould | According to customers' request to build the mould. Before make the mould, we sent mould design to customer approval first , before move forward to production ,we send samples to customer to confirm first. |
5.Sample shoot | If the first sample come out is not satisfied customer, we modify the mould and until meet customers' satisfactory. |
6.Products in store | If your quantity is beyond of our storage, we will provide lead time to you. |
7.Delivery | Delivery goods by sea or by air, according customer’s requirement. |
Technology
1) Mould structure design
Professional designers provide you with reasonably designed mould to shorten cycle hours.
Reducing unnecessary procedure improves efficiency.
2) Mould cooling system
According to the structural characteristics of the product and the appearance of the product , We design a reasonable form of gate for mould, such as a large gate, hidden gate, fan gate, needle gate, pin point gate etc., a reasonable channel of runner design make mold temperature balance in the shortest time to improve mould precision and productivity.
3) Accessory for mould
Slide, guide pin, guide sleeve, lifter blocks and so on are taken by wear-resistant standard parts, to ensure the mould life.
4) Deal with mould
Quenching the mold, heat treatment to improve the hardness, then Nitriding temperature is lower , the mold will no longer need to quench mold with high surface hardness and wear resistance more than HV850
Service
1) We can repair the mould in one year for some free and provide technology.
2) ordering formand materials application are conducted in strict accordance withISO9001/ ISO14001 quality management.
3) High quality, attractive price.
