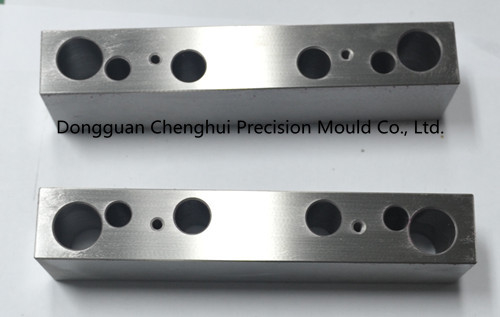

Medical plastic injection mold base GM , JIS , DIN , AISI Standard

Medical plastic injection mold base GM , JIS , DIN , AISI Standard

injection mould base

mould plate

Place of Origin:

Dongguan China

Brand Name:

Chenghui

Certification:

ISO9000: 2008

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden Case
Delivery Time
8 days
Payment Terms
T/T
Supply Ability
1000
Product Description



Mould plate for mediacal  plastic injection mould



1. Material using : S45C,S55C or others

2. Size ; According customer requirement

3. Hardness: According material character

4. Surface Grinding Precision : 0.002MM

5..Angle Clearness<0.05

6. OEM service

7. MOQ:1 PC acceptable





Production Normal Information



Technique standard: According to national standards GM,JIS,DIN,AISI,ect. and other national standard



Chenghui Precision Mould production equipment List: High Speed CNC 2 set EDM 3 sets, grinder 20sets,,wire-cutting EDM 3 sets, milling machine 1 set, all machine imported for Switzerland ,Japan and China Taiwan.



Chenghui Precision Mould service: LED lead frame mould, LED lead frame mould parts, Progressive stamping die, Progressive stamping die parts, Precision plastic mould parts, Connector mould parts, Precision Electronic Mould Parts, Precision medical mould Parts, Punch die Parts , High speed CNC milling ,EDM,WEDM etc.





Quality system Management



At Chenghui Precision Mould, quality is maintained throughout the entire manufacturing process. Using dimensional and optical inspection methodologies, Chenghui Precision Mould ensures that the tolerance and dimensional integrity of each part remains uncompromised.



Chenghui Precision Mould operate ISO 9001:2000 system; such as product abnormal handling process program and and customer complaint handling program, committing to continuous process improvement eliminating variability and inconsistency within the manufacturing process.



CPK control key point and key size.
