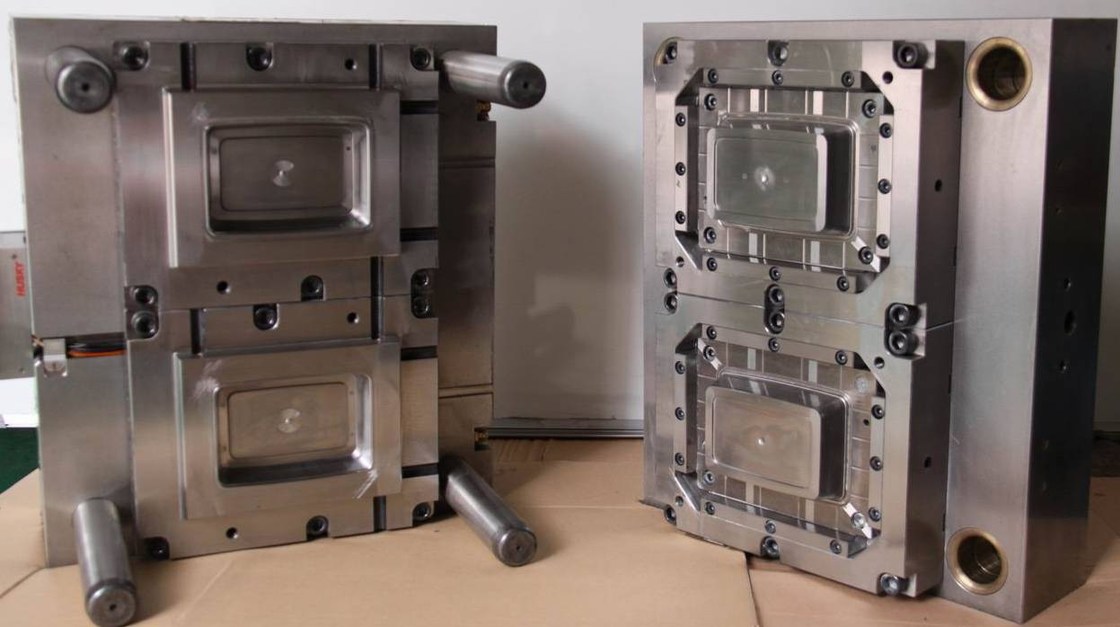

Mirror Polish IMD Custom Injection Molding For Electronic Products
Specifications:
|
1 |
Mould base |
LKM & Hasco & DME standard |
|
2 |
main material of core and cavity |
S136, H13, 2344, 718, 2738, 8407, NAK80… |
|
3 |
Hardness of mould |
soft mould: 38~42HRC hard mould: 48~52HRC |
|
4 |
Cavity |
Single-cavity, Multi-cavity, family mould, interchangeable core/cavity |
|
5 |
Surface treatment |
EDM, texture, grinding, mirror polish |
|
6 |
Gate type |
cold runner, hot runner (Yudo/DME/Hasco) |
|
7 |
Maximum mould size |
800*800 mm |
|
8 |
Mould life span |
300000~+1,000,000 shots |
|
9 |
Quality |
ISO9001-2000 certification |
|
10 |
injection material |
ABS, POM, PMMA, PC, PP, Nylon, PA+GF, PET, TPE, PVC, HDPE etc |
|
11 |
Lead time |
30-40 days |
|
12 |
Package |
Wooden case for tools ,PE bags added export carton for parts |
|
13 |
Payment term |
T/T |
|
14 |
Trade terms |
EXW, FOB, CIF |
|
15 |
Export country |
Italy, Australia ,Hungary,Germany, USA, Canada… |
|
16 |
Secondary treatment for parts |
painting, silkscreen, pad printing, plating, assembly |
Characteristics:
1, Flexible for design, which can realize the various terms of products in faster and cheaper solution.
2, No need to use any adhesive with glue for assembly with plastic panel, which meets environment protection requirement.
3, The emboss key can be realized during the plastic injection process. Life time keys can reach to 1 million times.
4, Precision design, well protect the inner film by plastic panel.
5, Dust and humidity resistance.
6, Guarantee long time printing stay on the film panel, good capability of anti scratch.
7, Saving the working time and cost for assembly film with plastic panel.
8, 3D forming of plastic panel together with film, to enlarge the application of film assembly form flatness surface panel to 3D surface.
9, To office customer more design possibility with better appearance and more safety solution.
Competitive Advantage:
double injection, over moulding, insert moulding, in mouding labelling
