Customized Strong Injection Molded Bonded NdFeB Magnet / Most Powerful Injection Molded Magnet
Here introduce Injection Molded Magnet / Plastic magnet to you .
Plastic magnet is different from the traditional magnetic craft which made by mixing the magnetic particle with plastic medium, mixed and heated by the injection machine and then rip the mixture into the mould to get different shapes of production, this kind of process makes the Plastic magnetic has some unique advantages.
Commodity Description and Specification :
Magnetic powder is neodymium-iron-boron (NdFeB), either isotropic or anisotropic. And Polymer binders utilized are PA6, PA12 and PPS.
It is a new technology to achieve adjustable magnetic properties, composite molding, elastic magnetization and high mechanical strength.
Injection molded magnets can be of very complex shapes with high precision, typically, tolerance is+/-0.005mm, it is suitable for high precision parts.

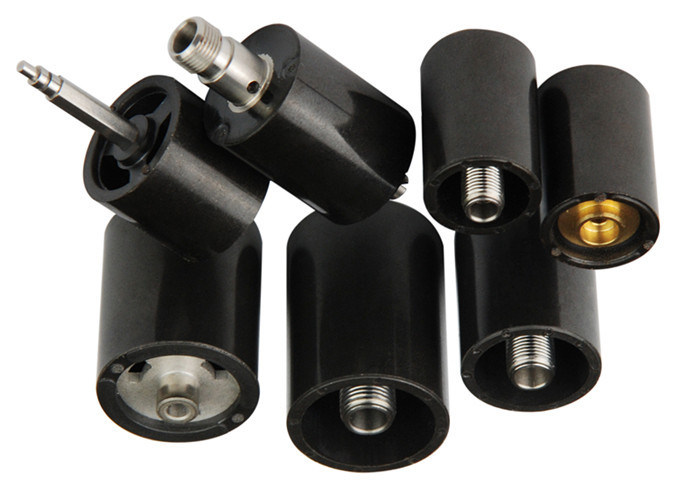

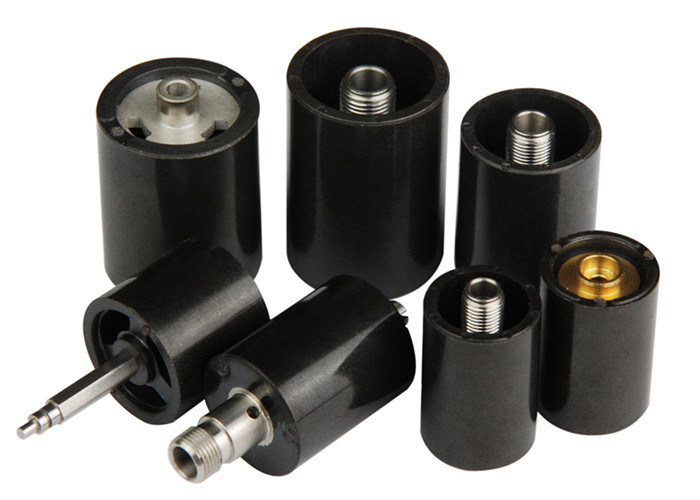

By doing insert molding, magnetic material can be directly molded into or onto other assembly components without further assembly process.
Anisotropic NdFeB powder achieves the highest magnetic force as injection molded magnet. And it is possible to achieve BHmax 17GMOe, and can replace some of sintered products.
NdFeB Material Magnetic Properties |
|||||||||||
Grade |
Material |
Magnetic feature |
Residual flux density (Br) |
Coercive force (bHc) |
Intrinsic Coercive force (iHc) |
Max Energy Product (Bhmax) |
Max application Temperature |
||||
mT |
Gs |
KA/m |
Oe |
KA/m |
Oe |
KJ/m 3 |
GMOe |
Centigrade |
|||
MJMN1210 |
NdFeB+PA12 |
Isotropic |
454 |
4,540 |
305 |
3,830 |
691 |
8,680 |
35.0 |
4.40 |
100 |
MJMN1220 |
NdFeB+PA12 |
Isotropic |
507 |
5,070 |
338 |
4,250 |
693 |
9,048 |
43.0 |
5.40 |
100 |
MJMN1230 |
NdFeB+PA12 |
Isotropic |
536 |
5,360 |
353 |
4,430 |
773 |
9,700 |
47.0 |
5.90 |
100 |
MJMN1240 |
NdFeB+PA12 |
Isotropic |
619 |
6,190 |
385 |
4,840 |
704 |
8,850 |
59.7 |
7.50 |
100 |
MJMN1310 |
NdFeB+PA12 |
Anisotropic |
683 |
6,830 |
484 |
6,075 |
1,154 |
14,495 |
86.2 |
10.80 |
100 |
MJMN1320 |
NdFeB+PA12 |
Anisotropic |
735 |
7,350 |
515 |
6,470 |
1,136 |
14,280 |
99.5 |
12.50 |
100 |
MJMN1330 |
NdFeB+PA12 |
Anisotropic |
823 |
8,230 |
540 |
6,780 |
1,089 |
13,680 |
119.8 |
15.10 |
100 |
MJMN1410 |
NdFeB+PPS |
Isotropic |
435 |
4,350 |
300 |
3,770 |
680 |
8,545 |
32.0 |
4.02 |
120 |
MJMN1420 |
NdFeB+PPS |
Isotropic |
480 |
4,800 |
310 |
3,896 |
680 |
8,545 |
39.7 |
4.99 |
120 |
MJMN1510 |
NdFeB+PPS |
Anisotropic |
658 |
6,580 |
466 |
5,855 |
1,377 |
17,305 |
78.7 |
9.90 |
120 |
MJMN1520 |
NdFeB+PPS |
Anisotropic |
676 |
6,760 |
472 |
5,925 |
1,145 |
14,385 |
82.7 |
10.40 |
120 |
Applications:
Air conditioning components, Auto parts,motor, Automation equipment, Printer magnetic roller, Brushless dc motor, Instrument, Buffer cylinder, Sensor, etc.
Core competition ability:
Zhongci High Precision Injection Bonded Magent are deserved to buy!
