Place of Origin:

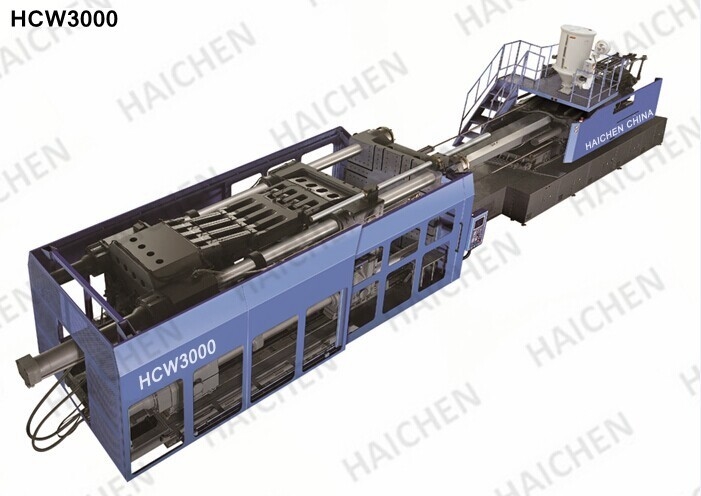

HCW3000 Automatic Hydraulic Injection Molding Machine For Car bumper
Plastic injection moulding machine
4.Stable and super long life plastic machine
HCW3000 Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc., this machine is with clamping force 3000tons, which can be use for produce car bumper, garbage bin and something like this.
1.) The double proportional compound valve control system pressure & flow, highly sensitive & stable
2.) Imported high quality Pump, low in noise, long in lifespan & stable in performance
3.) World-famous servo hydraulic system optional, better performance in lower noise & energy saving
1. Heaters adopt ceramic, the using life is double than stainless steel.
2. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
3. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
4. The machine equipped with hydraulic protection
5. The machine equipped with double Hydraulic pulling device
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates
HCW3000 injection molding machine is the type of fully automatic machine, being provided with high
efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Machine main components adopt world famous brand, e.g.:
• PLC: TECHMATION CONTROLLER(Taiwan)
• AC Contactor: SIEMENS(Germany)
• Travel switch: SCHNEIDER(FRANCE),
• Transducer: NOVOTK (Germany)
• Proportional Valve: HNC(TAIWAN)
• Oil pump: VICKERS(USA)
• Directional Valve: VICKERS(USA)
• High-pressure pipe line: GOOD YEAR (USA)
|INTERNATIONAL CLASS NO||HCW3000|
|Screw L/D ratio||L/D||24||24||22.9|
|Space between tie bars(W×H)||mm||1900×1750|
|Pump motor power||kW||55+55+55+55|
