LKM Base Aluminum Die Casting Mould PVC , CNC Machining Casting Process

LKM Base Aluminum Die Casting Mould PVC , CNC Machining Casting Process

aluminum Die Casting Mould

plastic injection mold

Place of Origin:

Made in China

Brand Name:

GAOTIAN

Certification:

ISO9001:2008;SGS

Model Number:

GT-DCM-4

Contact Us

Request A Quote
Product Details
Mold Type:
Die Casting Mould
Application:
Sumsung|mobile Phone
Cavity:
Single Mould|Multi Mould
Certificate:
ISO 9001|SGS
Design Software:
UG|Solidworks|Auto CAD|PDF
Finished:
Polishing|heat Treatment|powder Coating|anodizing|Chrome Plating|mirror Polishing
Material:
Aluminum|Magnesium Alloy
Plastic Material:
PP|PC|PU|PVC|ABS|PMMA
Precision Machining:
Milling|drilling|cutting|reaming And Threading
Process:
Sand Casting|Gravity Casting|low Pressure Die Casting|CNC Machining Casting
Standard:
ASTM|DIN|ISO|GB Standards
Payment & Shipping Terms
Minimum Order Quantity
1 sets for Mould; 1000 pcs for Part
Price
Negotiable
Packaging Details
Wooden Box with Iron Fram; Carton
Delivery Time
30 Days
Payment Terms
T/T, T/T, Western Union
Supply Ability
30 sets/ month
Product Description



LKM Base Aluminum Die Casting Mould PVC , CNC Machining Casting Process





Quick Detail:



This part is made out of Aluminum alloy die casting Mould, the mould life can reach 1 million shots, hard

 mould base and the mould core steel experienced hot-hardness treatment, top quality.





Description:



Feature:

Material

1.Sand casting&Gravity casting&Low pressure die casting:

A356/A319/A413/ZL101/ZL102/ZL104/ZL107/LM6//LM/20/LM25/EN AC-42100/

EN AC-42200/

EN AC-43000/ EN AC-43200/EN AC-43300/EN AC-43400/EN AC-44200/

EN AC-44300/EN AC-46000/EN AC-46200

2.High pressure die casting:

A380/A390/A360/ADC10/ADC12/ENAC-43400/ENAC-44300/ENAC-44400/

ENAC-46000/ENAC-46100/ENAC-46200/ ENAC-46500/ENAC-47100/Zinc

3. CNC machining casting: 6061-T6/6063-T6

Process

Sand casting, Gravity casting, high pressure die casting, low pressure die casting

and CNC Machining casting.

Designs

1.As per the customer’s drawings 2.As per the customer’s samples

Equipment of Casting

1.High pressure die casting machining: 125T/180T/250T/280T/500T/800T/1250T

2.Gravity casting machine: 5 production lines

3.Low pressure die casting machining: 1 production line

4.Sand casting machine: 6 production lines

5.Degassing equipment and opportunities to refine the material

6.Machining: 3Sets CNC Machine;3 sets Milling machine; 3 sets Turning machining;

10 sets drill and tap machine

Testing facility

spectrometer, tensile test machine, hardness test machine, CMM dimension report

Certificate

ISO9001:2008 SGS

Standard

ASTM, DIN,JIS, EN, ISO, GB standards

Software

Pro/E,UG, Solidworks, Auto CAD, PDF

Precision machining

CNC turning, milling, drilling, grinding, cutting, reaming and threading

Finished

Polishing, sand blasting, heat treatment, painting, powder coating, anodizing,

electroplating, Chrome plating, mirror polishing.

Service

OEM service available.

Product

All kinds of aluminum casting: include automotive parts, railroad parts, medical

parts, marine parts, lighting parts, pump body, valve parts, architectural parts

and furniture parts so on





Applications:

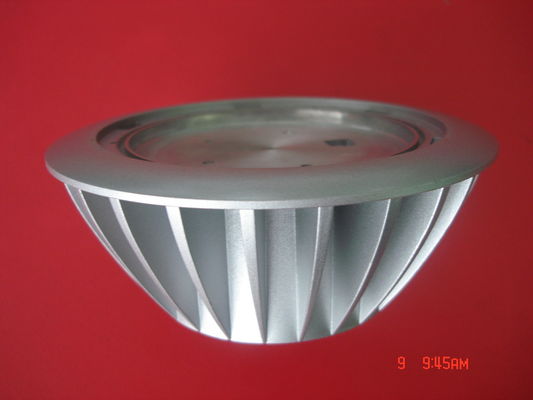

This product is a LED lamp base and used on different non-standard lighting field.





Specifications:



1. Quote competitive price according customer detail requirement

2. Sign agreement.

3.Customer T/T deposit to us to design mould

4.Send mould drawing to customer for confirmation

5.Mould design confirmed and start to make mould.

6.Make mould trial during tooling time(which we get agreement with customer).

7.Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould

personally.

8.Customer T/T balance to us after mould confirmed.

9.Deliver mould after get balance.

Competitive Advantage:



1. We keep long term cooperation with some world Top Brand on electronic product area, such Epson,

Canon and Sony.

2. We have successfully gained the quality certificate of ISO 9001 and IGS.

3. We can design and manufacture the mould in different specification and standard, such as DME,HASCO

and DAIDO.

4. The factory is well equiped with the most advanced testing instrument, it is effective to ensure the

precision of the mould.

5. Strict quality control;

6. Good After-sale service;

7. On time delivery.

We can tailor various kinds of Plastic mould for each customer as per their requirements. The quotation can

be made based on drawings or samples provided by the customers. Our products are both excellent in

quality and reasonable in price. Your satisfaction is guarantee.





LKM Base Aluminum Die Casting Mould PVC , CNC Machining Casting Process 0



LKM Base Aluminum Die Casting Mould PVC , CNC Machining Casting Process 1 LKM Base Aluminum Die Casting Mould PVC , CNC Machining Casting Process 2
