Hydraulic system high speed injection molding machine for turn - over box

Hydraulic system high speed injection molding machine for turn - over box

Good Quality Hydraulic system high speed injection molding machine for turn - over box Sales

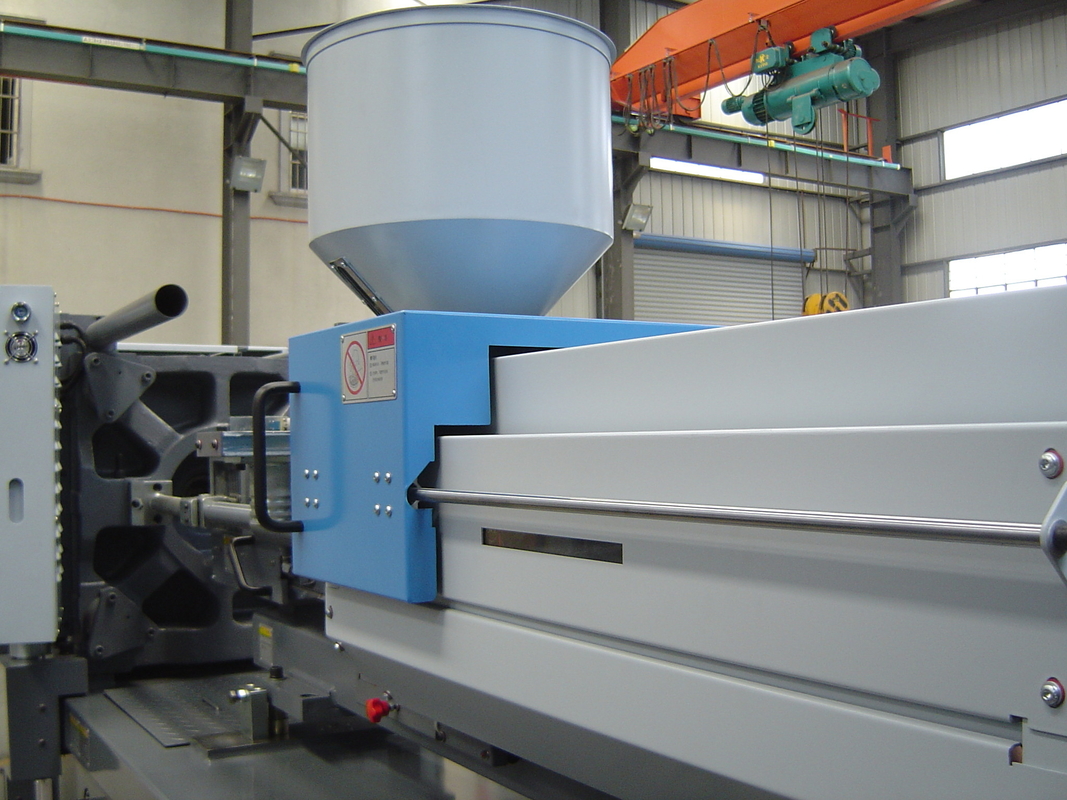

Large Image :  Hydraulic system high speed injection molding machine for turn - over box

VAINO INTERNATIONAL LIMITED

Verified Supplier

Ningbo,China

Business type: Manufacturer, Exporter, Seller

Telephone : 86-574-88054805

Room1315,B# Ningbo Chamber Of Commerce Building,No.588 Tiantong South Road,Yinzhou District,Ningbo,China

Product Details:

Place of Origin: Ningbo,China
Brand Name: VAINO
Certification: CE/ISO9001:2000
Model Number: K3-400

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Wooden pellet Wooden case(optional)
Delivery Time: 15-25 working days after confirm order and received deposit
Detailed Product Description

Hydraulic system high speed injection molding machine for turn - over box



specifications



CLAMPING  UNIT

Adopting the optimization design of the five pivot oblique take double elbow mold locking mechanism

According to a set of automatically regulating membrane membrane force microscopic



INJECTION UNIT

Linear slide rail to ensure stable and precision injection

High speed high pressure injection structure,  increase the injection speed



HYDRAULIC SYSTEM

Large capacity,  high speed and injection of hydraulic system

Using of Germany's REXROTH variable pump system,  energy saving,  stable and reliable



The keyboard locker is set to prevent the operators from changing the data .

Computer setting and PID closed loop system are adopted to control the temperature of canister precisely



The machine is furnished with functions like anti-cold startup and alarm for material shortage.

It can also memorize the molding parameters and protect the passwords .

The plastic injection ,model opening and closing are controlled with gauge on the machine intake .





It adopts imported plastic injection computer ,with large screen high definition crystal display and human-computer interface in both Chinese and English ,Through CUP independent control and treatment,it has raised the running speed of the control system and alarming of ultra-high oil  temperature ,thus improving the operation speed of the machine



Description





SPECIFICATION

MODEL
Description UNIT K3-400
INJECTION UNIT
Shot volume Cm³ 1767 2011 2270
Shot weight(ps) g 1626 1850 2088
Shot weight(ps) Oz 57 65.2 73.7
Screw diameter mm 75 80 85
Injection pressure Mpa 191 168 148
Injection rate g/sec 281 320 361
ScrewL/D ratio   23.4 22 20.7
Screw stroke mm 400
Screw speed(stepless) Rpm 0~126
Nozzle contact force ton 13

Clamping force ton 400
Opening stroke mm 720
Platen size mmxmm 1060X1060
Space between tie bars mmxmm 730X730
Max.daylight mm 1470
Mold thickness(min.-max.) mm 250-750
Hydraulic ejection stroke mm 210
Hydraulic ejection force ton 11.3
Ejector pin Unit 13
POWER UNIT
Hydraulic system pressure Mpa 16
Pump motor Kw 37
Heating capacity Kw 27
Number of temp control zones Unit 6

Oil tank capacity L 700
Machine dimensions mxmxm 7.7X1.7X2.3
Machine weight ton 14.5



Configurations



Name

Configuration

Controller

KEBA-Austria (8 inch)

Linear Motion Guide

HTPM--- China

Linear Transducer

WOOG---Hongkong/ OPKON---Turkey

Hydraulic Motor(charging material)

INTERMOT-CHINA ITALY JOINT VENTURE

Directional Valve

NORTHMAN---Taiwan

Main Switch

LG---South Korea

Single pole  Switch

ANDELI

Proximity Switch

YINGKE

Seals

NOK---Japan

Pressure Gauge

DMASS-Germany

Limited Switch

SCHNEIDER---France

Oil Hose

MNULI---Italy/ SW---Italy

Adjustable Motor

INTERMOT-CHINA ITALY JOINT VENTURE

Lubrication Device

HERG---Japan





 ADDITIONAL FUCTION



Voltage

415v 50hz 3phase 4line

Hopper  with lid material

 SS(stainless)

Alarm system

Light shining with sound

Heating elements

SSR

Heating band quality

Infrared

Condenser

One middle bigger

Core pull function

3 hydraulic+3pheumatic

Machine program

Keba program with 3hydraulic ,3 pheumatic core pull changable

Injection cylinder

2

Servo system

Drive-Huichuan

Motor-Saisi-China

Gear pump-Sumitomo-Japan

Pressure sensor-KAVLICO

Center lubrication system and Manual

Both

Lubrication pipe

Plastc pipe with spring protection

Lubrication distribute

Auto jam detector distribute

Machine bush elements

Copper

Loading and un-loading care

For machine lifting purpose, properly positioned and

clearly marked ‘hooks’ to be provided.

Voltage stabilizer for PLC

1000VA
