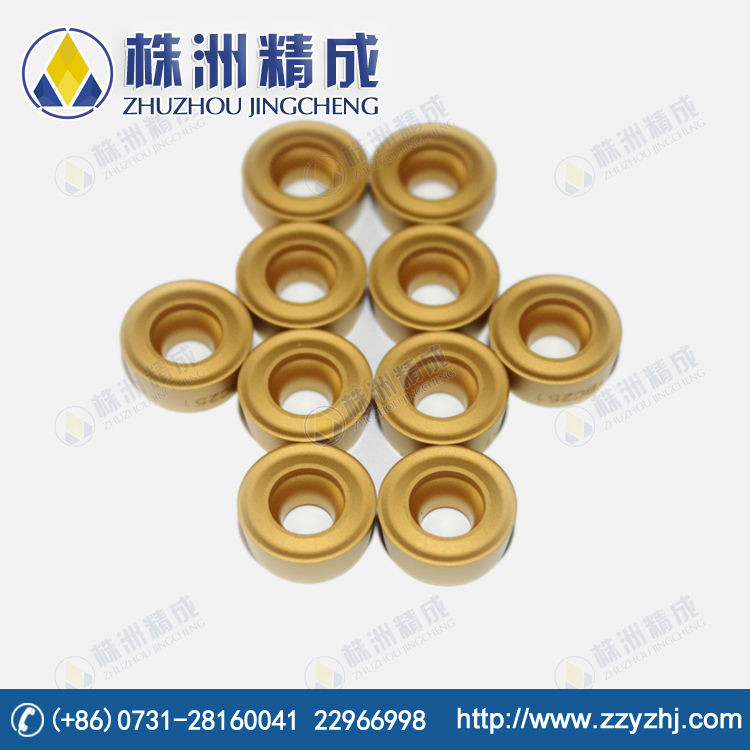

Zhuzhou CNC Turning Tool Inserts CVD Coating Inserts for Semi-finishing of Steel

YBC151

1. Excellent wear resistance
2. MT-TiCN, thick layer of Al2O3 and TiN Coating
3. For finishing steel

YBC152

1. Thick TiCN and thick Al2O3 coatings improve the impact toughness and abrasion resistance, which makes it suitable for finishing and semi-finishing of steel at high speed.
2. Cutting speed can increase by more than 25%, while the tool life can increase by more than 30% at the same cutting speed.

YBC251

1. Good toughness and high security of cutting edge.
2. MT-TiCN, thick layer of Al2O3 and TiN Coating
3. For semi-finishing of steel .

YBC252

1. Comprising of thick TiCN and thick Al2O3 coatings, the grade has high capability against plastic deformation and good hardness of cutting edge.
2. It is preferred grade for machining of steel from finishing to roughing.
3. Under the same cutting conditions, the cutting speed can be increased by more than 25%, while the tool life can be 30% longer under the same cutting speed.

YBC351

1. High wear resistance .
2. MT-Ti(CN), thick layer of Al2O3 and TiN Coating
3. For finishing and semi-finishing of cast iron materials

YBD052

1. CVD coated grade, which is characterized by super fine grain and smooth surface, is the combination of hard substrate and coating (extra thick Al2O3+ thickTiCN).
2. The grade is optimized for best wear resistance when machining gray cast iron at high speed under dry condition.

YBD102

1. CVD coated grade , which is the combination of hard substrate and coating ( thick Al2O3+ thickTiCN), shows excellent wear resistance and impact resistance when machining nodular cast iron at high speed.

YBD151

1. High strength and resistance
2. MT-TiCN, thick layer of Al2O3 and TiN Coating
3. For steel roughing.

YBD152

1. CVD coated grade, which is the combination of hard substrate and coating

(medium thick Al2O3+ thick TiCN), has good flaking resistance.

1. It is suitable for turning of cast iron at high speed, and light intermittent cutting can be supported even at moderate speed.
2. It is also suitable for milling of cast iron.

YBD252

1. CVD coated grade, which is the combination of hard substrate and coating (medium thick Al2O3+ thick TiCN), achieves the balance between wear resistance and toughness.
2. It is suitable for wet milling of cast iron, which requires toughness(such as nodular cast iron) at moderate or low speed.
3. It is also suitable for intermittent turning.

YBM151

1. Substrate with special structure, in combination with coating composed of TiCN, thin Al2O3 layer and TiN, with excellent resistance against diffusive wear and plastic deformation makes it suitable for finishing, semi-finishing and roughing of stainless steel.

YBM153

1. Thin coating layer with better wear resistance and toughness,
2. Optimal residual stresses makes the toughness excellent and improves anti-cracking ability.

YBM251

1. Combination of substrate with good toughness and strength and coationg composed of TiCN, thin Al2O3 layer and TiN makes it suitable for semi-finishing and roughing of stainless steel.

YBM253

1. Widely applied in high-efficiency machining with high cutting depth and high feed rate.
2. With advanced ultra-fine grain nano coating technology, the grade uses gradient alloy substrate with high toughness. It demonstrates excellent capacity at cutting with high cutting depth, high feed rate and high speed.

YBG102

1. The combination of nc-TiAIN coating and fine grain substrate makes it suitable for turning of various materials and finishing and semi-finishing of high-temperature alloys.

YBG105

1. PVD coating
2. For finishing and semi-finishing of high temperature and heating-resisting alloy material etc.

YBG202

1. Nc-TiAIN coating and ultra-fine grain substrate makes it suitable for finishing and semi-finishing of various materials and turning of super alloy.

YBG205

1. Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge.

YBG302

1. The combination of nc-TiAIN coating and tough cemented carbide substrate, which integrates security and wear resistance, makes it suitable for parting and grooving of various materials.

YCB011

1. This is a PCBN grade which contains high CBN, with outstanding hard -ness(HV3400-3800), thermal stability, heat conductivity and good wear resistance.
2. It is mainly used for high-speed machining of cast iron, Fe-base P/M materials and heat resistant alloy.

YCB012

1. This is a PCBN grade which has low CBN and fine grain structure, with high hardness(HV3200-35000), good thermal stability and comparatively low heat conductivity.
2. It is mainly used for high-speed and highly precise continuous or slightly intermittent machining of hardened steel.

YCD011

1. This is a PCD grade which has medium grain structure, with high hardness(HV7000),outstanding wear resistance and heat conductivity.
2. It is mainly used for high-precision, high-speed and high-efficiency machining of non-ferrous metal(Al,Cu and their alloy) and non-metals(ceramics, wood and reinforced plastics,etc.)
3. It has universal applications.
