Custom MT3 MT5 Milling Protect Collects High Precision CNC Turning Cutter Holder

Custom MT3 MT5 Milling Protect Collects High Precision CNC Turning Cutter Holder

cnc lathe tool holder

milling tool holders

Place of Origin:

China

Brand Name:

INMIND

Certification:

SGS Factory Certificater

Model Number:

TAPS Overload protect collect

Contact Us

Request A Quote
Product Details
Features:
High Precision
Application:
Milling
Collet:
ER, Spring
Material:
Steel
Product Name:
CNC Tool Holder
Suit Of:
MT2, MT3, MT5
Payment & Shipping Terms
Minimum Order Quantity
100pcs per specification wthin 12mm
Price
Negotiable
Packaging Details
1 piece packing
Delivery Time
For Samples: 3-5 days For Batch:10 to 15 days.
Payment Terms
T/T 100% Advinced,Paypal,Western Union
Supply Ability
50000pcs/month
Product Description



Custom MT3 MT5 Milling Protect Collects High Precision CNC Turning Cutter Holder





Quick Detail:



High Quality Alloy Steel Which is special for tools holder

Good Heat-Treatment,Hardening and Tempering.

Manufactuered by High Precision CNC Turning and Grinding Machine.

Fit fro M3-M30

Smooth Surface

Wonderful Apperance

1 piece packing or Suit

Overload Protect collect





Description:



Speical material for tools holder,produced by high Precision CNC turning machine and Grinding Machine.Protect Taps to be broken,create more value for customer,reduce the risk of taps broken in the workpiece.Using the taps more easy and confidence.





Applications:



For TAPS make the screw.





Specifications:



Custom MT3 MT5 Milling Protect Collects High Precision CNC Turning Cutter Holder 0



Note:



G12: Make the screw hole from M3-M12

Normal Range: M3,M4,M4,M6,M8,M10,M12

Non-Standard Range:M14,M16

G24:Make the screw hole from M12-M24

Normal Range: M12,M14,M16,M18,M20,M22,M24

Non-Standard: M6,M8,M10,M27-M30



We have stock for all sepcifications

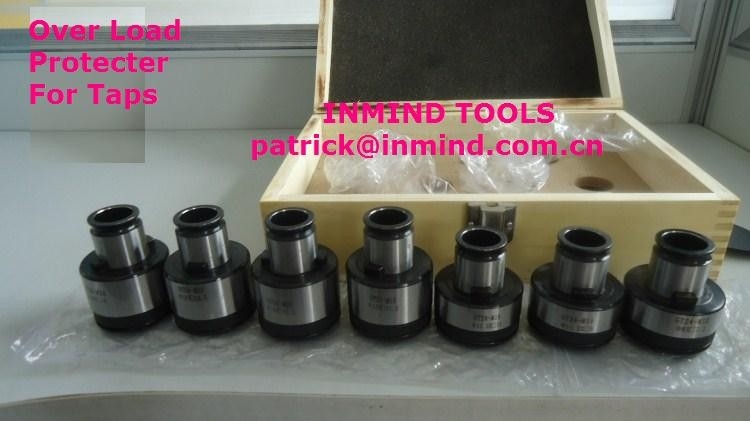

   This Product is using in machine tools which use TAPS to making screw,it composite by TAPS collect , Collect Jacket ,Compress Spring,Steel ball,TAPS Jacket.

The Specialty is :there have fasten claw which is tooth fit for the machine spindle on the end face of the Collect Jacket.There have steel ball , Spring and Clamping  nut bolt which can transmit the power to TAPS collect ,also can protect the overload.

Custom MT3 MT5 Milling Protect Collects High Precision CNC Turning Cutter Holder 1



1. Kinds of Connect Bar :MT2,MT3,MT4,MT5(Morse Taper)B16,B18

MT2-B16  MT3-B16 MT4-B16 MT5-B16

MT2-B18  MT3-B18  MT4-B18  MT5-B18

2. Shank Body for TAPS(TAPS Collect Holder):GT12-B16  GT12-B18

3. Taps Collect: We have stock for popular size.





Competitive Advantage:



Good Quality,Competitive price.Help the agent to get the get more large market

Custom MT3 MT5 Milling Protect Collects High Precision CNC Turning Cutter Holder 2
