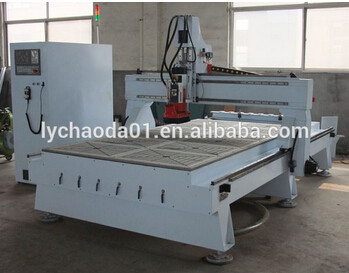

Super quality!3 Axis cnc carving machine for furniture making
2.Technical Parameter :
Description | Parameters |
Model | JCT1325L |
X,Y,Z axis working area | 1300*2500*300mm |
Whole structure | Welded Steel gantry structure |
Table surface | Vacuum table in zones |
X,Y,Z structure | Taiwan HIWIN Square linear guide rail |
X,Y structure | Rack and pinion transmission,high speed and more stable; Y -double motor drive |
Z structure | Imported ball screw, high precision |
Max. idling speed | 60m/min |
Max. working speed | 45m/min |
Repositioning Accuracy | ±0.05mm |
X Y Z working Accuracy | < 0.02mm |
Spindle | 9kw imported Italy HSD air-cooling spindle |
Spindle rotating speed | 0-24000rpm/min |
Tool magazine | Linear ATC system, with 8pcs tool magazine |
Diameter of tools | 3.175 -20 MM |
Collet size | ER 32 |
Operation language | G code (plt, mmg, uoo, bmp) |
Driving system | Japan Yaskawa servo motor and driver |
Operating system | Taiwan SYNTEC control system |
Working voltage | AC380V, 3ph, 50-60Hz |
Software | UcancamV8 / Type3 / Artcam software /Powermill |
3.Standard Accessories :
1.Vacuum table.
2.Dust collector.
3.Auto oil for lubrication
4. Tool height sensor
5. Hand wheel
4.Guarantee & After Sales Service :
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling .
3) Friendly English version manual and operation video CD disc.
4)Engineers can serve abroad
5)Distributor abroad for after service available
5.Application Materials :
Deep FOAM, EPS ,WOOD, STONE, MARBLE, INTERIOR GLAZED WALL TIE ,PLASTIC, Resin ,Rubber ,Granite ,Aluminum, Copper and so on.
