3D Mandrel Pipe Bender CNC Pipe Bending Machine For Bar / Wire Bending
Quick Detail:
CNC tube bending machine
Full automatic 3D bending
Suitable for different material, carbon steel, stainless steel, aluminum, copper and so on
Using imported hydraulic system, electrics, servo motors, PLC and so on
Working fast and precisely
Description:

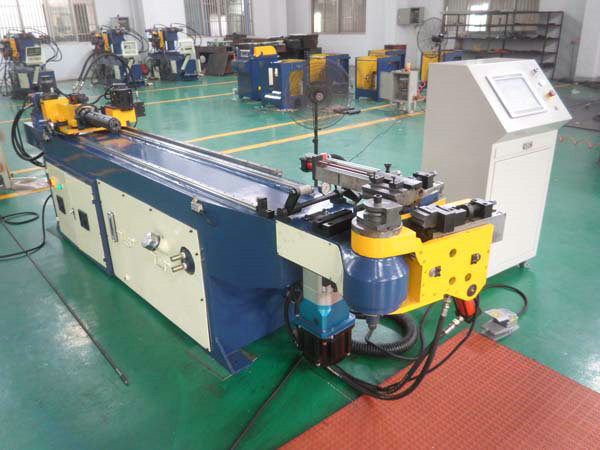

SB75CNC-TSR is the automatic 3D tube bender
The body of SB75CNC-TSR is made through welding, the mechanical part through assembly;
using imported hydraulic system and electronic control system.
The features of SB75CNC-TSR are listed:
1. Fully automatic and CNC tube bending machine;
2. Equipped with 2 programmable axis;
3. Imported hydraulic system, electric system and PLC unit;
4. Automatic lubrication system for moving areas;
5. Self-diagnostic system, detecting the error immediately;
6. Feeding: servo motor equipped with the ball screw;
Rotation: servomotor drive with reducer.
(servo motors are all from Mitsubishi);
7. Bending: Servo motor bending with reducer;
8. Touch screen and human/machine interface control provide user friendly operations;
9. Multiple groups pipe-bending information storage;
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time
work stably under the high temperature.
Technical parameters
|
Parameters |
SB75CNC-TSR |
|
Max bending capability |
φ75×3 mm |
|
Bending radius |
50~300 mm |
|
Bending angle |
0~195° |
|
Max clip pipe length |
3300 mm |
|
Bending speed |
25°/sec |
|
Bending accuracy |
±0.15° |
|
Feeding speed |
200~800 mm/sec |
|
Feeding accuracy |
±0.2 mm |
|
Rotating speed |
240°/sec |
|
Rotating accuracy |
±0.15° |
|
Rotating motor power |
1kw |
|
Feeding motor power |
1.5kw |
|
Main motor power |
7.5Kw |
|
System hydraulic pressure |
14MPa |
|
Size |
5500×1650×1350 |
|
Weight |
3260kg |
Applications:
The machine SB75CNC-TSR is widely used in the sports equipment tube bending, medical
equipment tube bending, automotive tube bending, air conditioner tube bending, wire
bending, car seats frame bending and some other industries.
Competitive Advantage:
1. The machine SB75CNC-TSR has reasonable body design, which makes the bending
space larger.
2. Stable hydraulic system ensures the machine working fast and free from hydraulic faults.
3. Important electric system makes more universality and accuracy.
4. Every part of the machine SB75CNC-TSR is detected strictly before used.
FAQ:
1. Q: Are you a factory or trading company?
A: Yes, we are a factory.
2. Q: What certificate do you have?
A: We have both ISO and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: What’s the main market of your company?
A: We have customers all over the world.
7. Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to
Shanghai by car.
8. Q: Can we visit your machine operation in your factory?
A: We have own workshop, and we are enthusiastically looking forward to your visit guidance and
business negotiations!
9. Q: How can we visit there?
A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.
