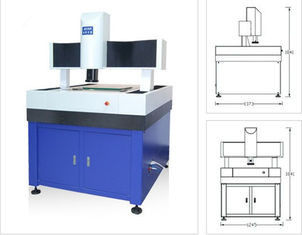

Large Video USB Optical Measuring Instruments With 3-Axis CNC Driven Motor
The Product Description:
Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically, it makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.
● Graph function key is black.
● Graph constructive key is red.
● Visual tool function key is black and green.
VML-CNC Characteristics:
|
● Modern shape design; |
VML-CNC Specifications:
|
Mode |
VML-6060CNC |
VML-1080CNC |
VML-1210CNC |
|
Order# |
52-661 |
523-181 |
523-121 |
|
Metal table size |
800x800mm |
1140x1000mm |
1140x1360mm |
|
Glass table size |
650x650mm |
1050x850mm |
1050x1250mm |
|
Travel: X,Y |
600x600mm |
1000x800mm |
1200x1000mm |
|
Z-axis Travel |
200mm |
200mm |
200mm |
|
Resolution |
0.0005mm |
0.0005mm |
0.0005mm |
|
X,Y-axis accuracy |
≤(3+L/200)um |
≤(3+L/200)um |
≤(3+L/200)um |
|
Measuring software |
QM4.1 |
QM4.1 |
QM4.1 |
VML-CNC Standard Delivery:
|
Standard Delivery |
Order |
Standard Delivery |
Order |
Standard Delivery |
Order |
|
Measuring Software |
QM4.1 |
CCD Camera MC3 |
484-123 |
Pomeas detent zoom lens |
421-101 |
|
Calibration Block |
581-801 |
Capture Card 7130 |
527-130 |
LED Lightsource |
425-400 |
|
Scale Transfer U3 |
564-301 |
Power,AV,RS232 Cable |
|
Dell PC host |
|
VML-CNC Optional Accessories:
|
Optional Accessories |
Order |
Optional Accessories |
Order |
Optional Accessories |
Order |
|
Pomeas Coaxial zoom lens |
421*001 |
Pomeas motor zoom lens |
421-001 |
Operation Joystick |
581-542 |
|
Working Cupboard ST03 |
581-631 |
|
|||
