Window / Door CNC Machining Center , 3 Axis CNC Router Engraving Machine

Window / Door CNC Machining Center , 3 Axis CNC Router Engraving Machine

Five Axis Machining Centers

Router Cnc Machine

Place of Origin:

China

Brand Name:

JBT

Certification:

CE/ISO9000

Model Number:

JD5-1838

Contact Us

Request A Quote
Product Details
Product Name:
Large Format 5 Axis Machining Center
Application:
Wood Mould Sculpture,three-dimensional Craft
Technology:
Trimming,shaping,drilling
Table Material:
Aluminum
Table Fix:
Vacuum Absorption
Operation System:
Italy OSAI CNC System
Rail:
Taiwan Hiwin35
Electric Component:
France Schneider
Motion:
Taiwan Hiwin Ball Screw
Table Size:
1800*3800*950mm
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiation
Packaging Details
PE film, wooden box need extra cost
Delivery Time
45working days after receive deposite
Payment Terms
T/T or L/C
Supply Ability
10set/per month
Product Description



Window / Door CNC Machining Center , 3 Axis CNC Router Engraving Machine





Why choose us:



1: All the component come from name brand:Germany WMH Herion gear; France Schneider



electric component; Taiwan Hiwin25,30,35 rail and ball screw.and so on



2: Select best walled steel tube for the machine,providing a rigid structure to dampen vibration



and assure long-term accuracy.



3: Three times inspect and test procedure before shipping.assures best performance



to avoid “after-sale service”



4: After-sale service:

one year warranty period. Offer maintain and guide service in whole use life of the machine.



respond to customer within 3 hours after get the machine breakdown feedback.





Product detail:



X axis

2500mm, Ball screw motion

Y axis

2500mm, Ball screw motion

Z axis

200mm, Ball screw motion

Working speed

15m/min

Table material

Aluminum

Table fix

Vacuum absorption

Vacuum pump power

5.5kw

Rail

Taiwan Hiwin35

Spindle

9.0kw 5 axis HSD air cooling

Spindle speed

24000r/min

Motor

Japan Yaskawa servo motor

Motor power

1.3kw

Operation system

Italy OSAI CNC system

Process precision

0.05mm

Automatic tool changer

Yes

Automatic lubrication system

Yes



Features:

1. With OSAI numerical control system, the machine is of high speed and high machining accuracy. the Germany original rotating arm ensure the accuracy and strength of the machine.



2. Z-axis travel can be heightened to 2.1 meters, so it is very suitable for processing large-scale three-dimensional surface.

The intelligent processing cross-border protection function can prevent the excessive process caused by mechanical collision.



3. Diversified control processing speed can control the working speed, traveling speed and dropping tool speed, and it improves the quality and efficiency greatly.



Applicable industries


1. Mold industry: Various large metalloid moulds, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold and wooden mold train.


2. Instrument industry: 3D surface engraving and shape cutting of large-scale instruments.





Company profile



JBT INTELLIGENT LIMITED designs and manufactures 3 Axis CNC & 5 Axis CNC Routers,

and Large Format CNC Machining Centers. With over 20 years of innovation, custom engineering

and industry experience. JBTserves almost every industry, especially aerospace, automotive and furniture industry. JBT CNC Routers are typically used on materials such as composites, aluminum,

plastics, wood and foams,for the woodworking and orthotics industries.



Manufactures industrial-quality Made in the china  large format 5 axis machining center –addressing the need in the market for a cost -effective, industrial CNC machining solution

without sacrificing on quality or reliability.



Component:

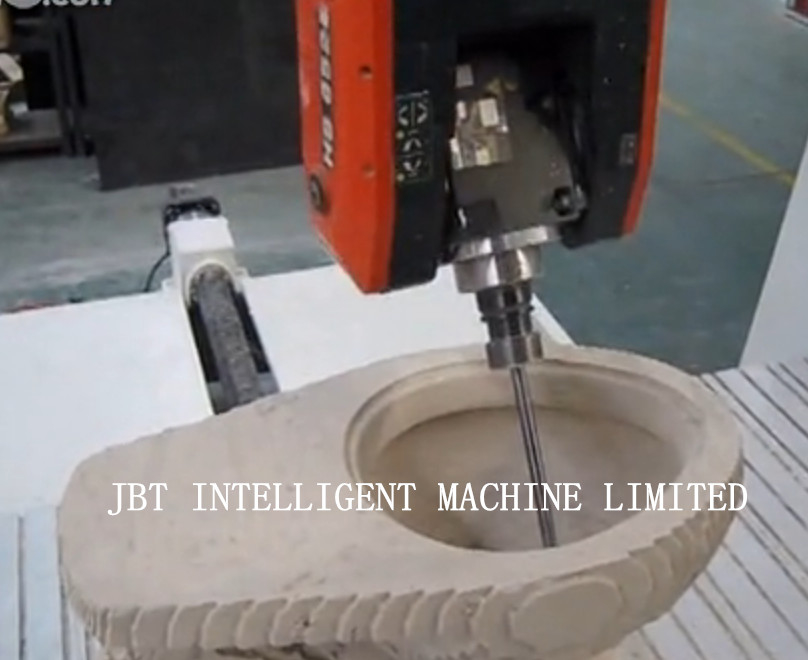

1: 5 axis Italy HSD spindle



Window / Door CNC Machining Center , 3 Axis CNC Router Engraving Machine 0

2:Japan Yaskawa drive and motor



Window / Door CNC Machining Center , 3 Axis CNC Router Engraving Machine 1



3:Taiwan Hiwin ball screw



Window / Door CNC Machining Center , 3 Axis CNC Router Engraving Machine 2
