Place of Origin:
Dongguan China
Brand Name:
Chenghui
Certification:
ISO9000:2008
Contact Us

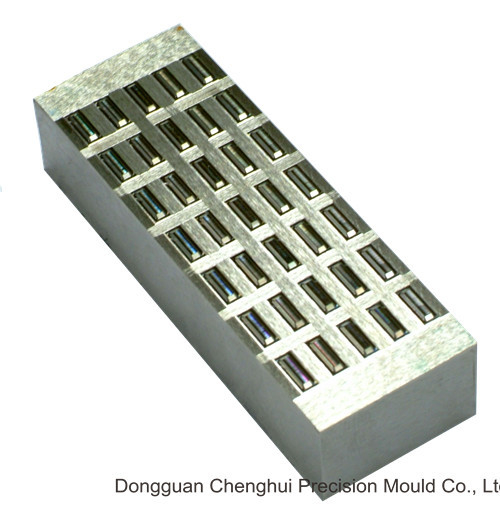

High Speed CNC Milling for LED lead frame injectionmould core insert
|
Material using |
imported Elmax |
|
Size |
According customer drawing |
|
Hardness |
50-60 HRC |
|
Treatment |
According customer require |
|
Grinding Precision |
0.002MM |
| High Speed CNC Precision | 0.002MM |
| Surface Roughness for EDM | reach to Ra 0.1 |
|
Angle Clearness |
<0.05 |
|
MOQ |
1 set |
|
Origin of Material |
America ,Japan, Sweden |
|
Process machine |
High speed , EDM, wire cut, miller |
|
Delivery date |
7-10 days |
|
Delivery type |
Express |
Chenghui precision mould talent and advanced equipment guarantee your product
1. Chenghui Precision Mould have more than 60 professional and skilled technicians ;10 master of optical profile grinding ,CNC milling, mirror EDM, wire EDM who were more than five years experiences working in foreign-owned enterprise. These talents ensure our product satisfy customer requirement quickly and our process skills are be industry leadership in mould machining field such as EDM and PG optical profile grinding.
2. Chenghui Precision Mould specialize in precision led lead frame mould , precision progressive stamp mould and precision plastic mould part.
3. Chenghui Precision Mould have experienced engineer and offer advanced R&D service ,your inquire would get prompt responses within 24 hours.
4. Sodick wire-cutting EDM and Sodick oil cutting EDM machines ensure general tolerance within 0.005mm, flatness,verticality,and linearity within 0.002mm.
5. High Speed CNC (Switzerland Mikron 500LP ) milling machines mainly make the electrodes and precise cubic curve product, which precision reach to 0.002mm. And our program master design the electrode and the CNC workshop produces it, which greatly ensures EDM precision, quality and fast delivery
6. Sodick EDM machines take out precision within 0.005mm.For special parts, Chenghui Precision Mould could handle the Sodick EDM machines, which reach to from Ra0.15 to mirror surface.
Our equipment list
|
Plastic Mould Department |
Seedtec grinder |
Taiwan |
614S |
+/-0.001 |
6 |
|
Agie Charmiles E.D.M. |
Switzerland |
FORM20 |
+/-0.002 |
2 |
|
|
Sodick E.D.M |
Japan |
AD30LS |
+/-0.002 |
3 |
|
|
J/G Coordinate Grinder |
Switzerland |
700*500/HAUSER |
+/-0.002 |
1 |
|
|
Sodick wire cutting EDM |
Japan |
AQ400LS |
+/-0.002 |
2 |
|
|
Seibu wire cutting EDM |
Japan |
MM50A |
+/-0.002 |
3 |
|
|
Quality Control Department |
Optical Projector |
Japan |
Nikon |
+/-0.001 |
2 |
|
High gauge |
Switzerland |
200/400/SYLVAC |
+/-0.001 |
1 |
|
|
Comparator tester |
Japan |
Nikon |
+/-0.001 |
7 |
|
|
Hardness tester |
China |
|
|
1 |
|
|
2.5-diemension altimeter |
china |
Wanhao |
+/-0.001 |
1 |
|
|
Microcalliper |
Japan |
Sanfeng |
+/-0.001 |
8 |
Cooperate with us
I warmly invite you to visit our factory at your convenience. Audit and evluate our advanced equipment and process technical, you will find our capability and quality control system. It will also be a win-win for us to develop long-term cooperation.
