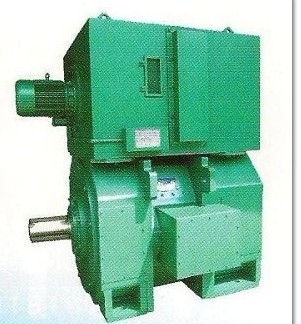

Z4 series DC Motor

Place of Origin:Shanghai, China (Mainland)

Brand Name:pinnxun

Model Number:Z4-160-11

Usage:Crane and Metallurgy

Certification:CCC, CE, ROHS, UL, VDE

Type:Gear Motor

Torque:117N.M

Construction:Series Wound

Commutation:Brush

Protect Feature:Drip-proof

Speed(RPM):3000rpm

Continuous Current(A):93.4A

Output Power:37kw

Voltage(V):440v

Efficiency:IE 2，IE2

type:DC motor

usage:universal machine

protection:IP21 IP23 IP44

wire:100% copper

altitute:not exceed 1000m

insulation class:F

temperature rise:B

duty:S1

delivery:in 30 days

warranty:in 12 months

Specifications

Z4 series DC Motor
capacity:2.2Kw-800Kw
voltage: 220V, 400V, 660V
Standard GB755,follow IEC
Frame:H100-H450mm

Z4 series DC Motor

Z4 d-c machines are newly developed products of our works. The products are found wide use for prime mover in various, sucb as mill auxilinry in merallurgical induetry, metal cutting machine-tool, paper making, print, textile, printing and dyeing, cement-making,plastic extruding machine, etc. Outline and mounting dimensions of the motors comply with IEC72 Standard, except for the axial distance between the mounting holes (dimension B). Performance and technical requirements of the motors can be checked in accordance with IEC34-1 Standard of the International Electro technical Commission, or DIN57530 Norm of the Deutsche Industries-Norm. The motors are class F insulated, with reliable insulating construction and impregnating process, cnsuring stable dielectric performance and excellent heat dissipation. The motors possess the features of small size, good performance, light weight, large output, high efficiency and reliability, being able to match the current international advanced level. The motors can be lastingly operated form fully controlled three-phase bridge without a smoothing reactor. Motors for 160V may be operated on single-phase bridge thyristor. In that case, a smoothing reactor, whose inductance is specified in the relevant technical date, should be inserted in the armature circult to suppres ripple current

Electrical machinery performance:

1.Data listed in the technical data sheet should be employed under the following conditions; a.Aitirude above sea level maximal 1,000m; b.Cooling air remperature maximal 40°C; c.Ambient conditions for motors should be free from acidic, alkali fumes or other aggressive gasea which corrode insulation. d.Duty: Continuous (SI); e.Armature and field circuits for motors may be either operated on static thyrisier controlled supplies, or from d-c generator; f.Performances of motors all comply with State Standard GB755. Fundamental technical rules for electrical machines. 2.Standard rated voltage: 160V or 440V, Values for 220V, 400V, and 660V or other voltage may be derived on request. 3.Rated speed: 3000,1500,1000,750,600,500,400,300 and 200 r/min, totally nine grades. Decrease armature voltage to make speed regulating under constant torque, lowering down field voltage to make speed regulating at constant output. Speed regulating range: see technical date . The torque can be remained constant by reducing speed via armature voltage weakening below raced value. It is stipulated that armature speed range can be down to the lowest 20 r/min at constant torque and stable running. 4. Separate excitation is the basic excitation type of the motors. Nominal field voltage: 180V. Other excitation voltages are also acceptable on request. Forced excitation is allowed with the voltage of less than 500V. When a motors is normally running, its excitation current must not be higher than rated excitation current. To assure the reliability of insulation of excitation system, the motor must be protected against self induced voltages by a release resistor connected in parallel with the excitation circult of the motor is interrupted. At rated field voltage the value of shunt resistor is about seven times filed winding resistance (cold state). While the field voltage is higher than nominal voltage, the value of shunt resistance may be lower than seven times field resistance, otherwise higher than seven times. 5.For frame size Z4-315, Z4-355, Z4-400 and Z4-450, compensating windings are provided. For frame size Z4-250 and Z4-280 the motors are feasible with a compensating winding too. 6.A marked earthing terminal is provided forth motors. 7.The efficiencies listed in the date sheet are for rated output, voltage and speed, and include excitation lose, exciuding that of separate ventilating fans

The letter'B'stands for motor with compensating winding, only applicable to Z4-250 and Z4-280. The letter'B'stands for motor with compensating winding, only applicable to Z4-250 and Z4-280. ** The digit 1,2 for short, and long endshield. *** As regards frame size-112, the first digit means NO. of poles, the second digit for core length. **** The letter'Z'for d-c machine, the digit'4'for ordinal number of the fourth series design. The digit 1,2 for short, and long endshield.

Structure synopsis:

1.Protection, mounting and type of construction: a. Type of protection of the whole series: IP21S b. Mounting modes comply with the State Standard GB/T997 stipulated as follows:

2.Methods of Cooling: Modes of cooling for all the motors are separate cooling, force ventilated. Cooling by frame radially mounted, separately powered ventilating fan, and attached with an air filter. Modes of cooling for motors may be made into three types, namely IC06, IC17 and IC37. a.For Z4-100-Z4-160, the blower is mounted on the non-drive side. b.For Z4-180-Z4-450, the blower is mounted on the drive side.
