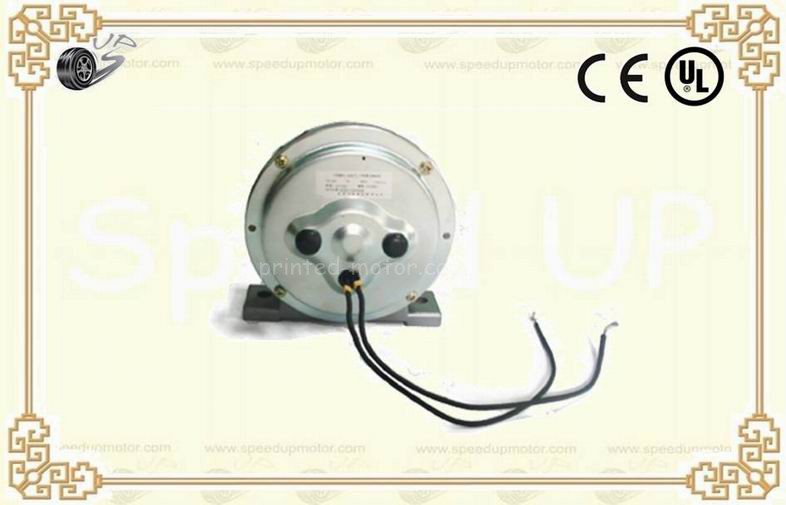

18.3V 50W Brushed DC Print Motor for Wire feeder , Flat Servo Printing Machine Motor

18.3V 50W Brushed DC Print Motor for Wire feeder , Flat Servo Printing Machine Motor

printed motor

print motor

Place of Origin:

Jiangsu,China

Brand Name:

Speed UP, DOUYOU

Certification:

CE 、 UL

Model Number:

3DY-G1A

Contact Us

Request A Quote
Product Details
Model:
3DY-G1A
Rated Power:
50W
Rated Voltage:
18.3V
Rated Speed:
75rpm
Payment & Shipping Terms
Minimum Order Quantity
100pcs, sample welcomed
Price
Negotiation
Packaging Details
Cartons
Delivery Time
15working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
10000pcs/month
Product Description

18.3V 50W Brushed DC Printed Motor for Wire feeder , Flat Servo Printing Machine Motor



Also can be 24V80W



Quick Detail:



Wire feeder DC motor, pancake motor,single output axis(2 holes in the fitting seat)

thin plate type printed armature winding

power to volume ratio

wide speed range

high linearity

small moment of inertia

large output torque

smooth operation of the advantages.



Description:

DC servo motor technology offers a slotless, ironless design with zero cogging for precision at all speed ranges, including single-digit rpms. The flat, thin armature provides for a compact form factor while enabling quick acceleration, deceleration and direction changes. The low-voltage DC design allows operation with simple drive electronics and a basic, convenient power source including battery power.

DC Pancake motor has many advantages such as a small axial size, low rotation inertia, good linearity, uniform operation, wide speed regulation and high efficiency. The seeies was made high performance and reliable operation and has been found a wide application in robot,machining center,cigatette making machine,auto-welding,coil winding machine and modern high accurate variable speed drive system such as navigation,tracking,artillery and radar,ect. DC servo print motor, connected with different types of tachogenerator or photoelectric coder, can be constituted of a closed control circuit.



Technical performance:

  1. Flat armature technic

  2. Ultra slim profile

  3. Long service life of brush

  4. Low moment of inertia

  5. More uniform torque

  6. Have higher overload capacity at moment

  7. Direction change of no spare

  8. Speedy response

  9. Low inductance

Applications:



Used for Welding wire feeding machine(Wire feeder)



Specifications:



 Product types:

 Brush print DC motor

 Model:

 3DY-G1A

 Rated power:

 50W

 Rated voltage:

 18.3V

 Rated speed

 75RPM

 Custom made:

 Yes

 Diameter:

 152mm

 Thickness:

 91mm

 Output axis size

 35.6mm



Competitive Advantage:



* Use thin plate-type printed armature winding

* High strength and wear-resistant gear shifting system.

* Bigger starting torque, wide speed range.

* Low speed running and good performance for commutation ability

*We have over 10 years experience in the industry,and have acquired certifications such as"CE"(Europe market)and ISO9000-2008 certificate.Our clients range are from Europe, South America and Southeast Asia to local retail and traders.

*Our factory covers more than 10, 000 square meters and we have set up a complete range of R&D with our own in house technicians, designers and engineers. Currently, has designed over 100 models of Electric Motor, the majority of which are exported to Europe, South America and Southeast Asia.

18.3V 50W Brushed DC Print Motor for Wire feeder , Flat Servo Printing Machine Motor 018.3V 50W Brushed DC Print Motor for Wire feeder , Flat Servo Printing Machine Motor 1
