Double Output Axis Wire Feeder Brushed DC Motor / DC Servo Gear Print Motor 100RPM

Double Output Axis Wire Feeder Brushed DC Motor / DC Servo Gear Print Motor 100RPM

brushed dc electric motor

wire feed motor

Place of Origin:

Jiangsu,China

Brand Name:

Speed UP, DOUYOU

Certification:

CE 、 UL

Model Number:

3DY-G2

Contact Us

Request A Quote
Product Details
Model:
3DY-G2
Rated Power:
80W
Rated Voltage:
24V
Rated Speed:
100rpm
Axis:
Double Output Axis
Type:
Brushed Gear Print Motor
Payment & Shipping Terms
Minimum Order Quantity
100pcs, sample welcomed
Price
Negotiation
Packaging Details
Cartons
Delivery Time
15working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
10000pcs/month
Product Description

24V 80W Double Output Axis Wire Feeder Brushed DC Motor , DC Servo Gear Print Motor



Quick Detail:



Wire feeder DC motor, pancake motor,double output axis

thin plate type printed armature winding

power to volume ratio

wide speed range

high linearity

small moment of inertia

large output torque

smooth operation of the advantages.



Description:



Micro motor armature winding structure is a special. Printed motor for short. Coil winding armature winding it with the traditional motor is different, in the complex of copper foil board formed by printing with the corrosion, electrochemical deposition, electrochemical transfer method.



Technical performance:

  1. Flat armature technic

  2. Ultra slim profile

  3. Long service life of brush

  4. Low moment of inertia

  5. More uniform torque

  6. Have higher overload capacity at moment

  7. Direction change of no spare

  8. Speedy response

  9. Low inductance

Applications:



Used for Welding wire feeding machine(Wire feeder)



Specifications:



 Product types:

 Brush PRINT DC motor

 Model:

 3DY-G2

 Rated power:

 80W

 Rated voltage:

 24V

 Rated speed

 100RPM

 Custom made:

 Yes

 Diameter:

 152mm

 Thickness:

 91mm

 Output axis size

 35.6mm

 Qty of output axis

 2



Competitive Advantage:



* Use thin plate-type printed armature winding

* High strength and wear-resistant gear shifting system.

* Bigger starting torque, wide speed range.

* Low speed running and good performance for commutation ability

*We have over 10 years experience in the industry,and have acquired certifications such as"CE"(Europe market)and ISO9000-2008 certificate.Our clients range are from Europe, South America and Southeast Asia to local retail and traders.

*Our factory covers more than 10, 000 square meters and we have set up a complete range of R&D with our own in house technicians, designers and engineers. Currently, has designed over 100 models of Electric Motor, the majority of which are exported to Europe, South America and Southeast Asia.

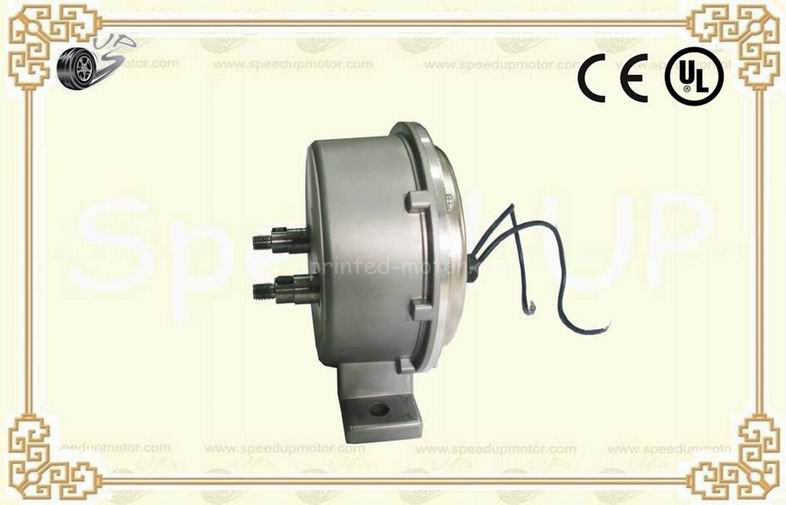

Double Output Axis Wire Feeder Brushed DC Motor / DC Servo Gear Print Motor 100RPM 0
