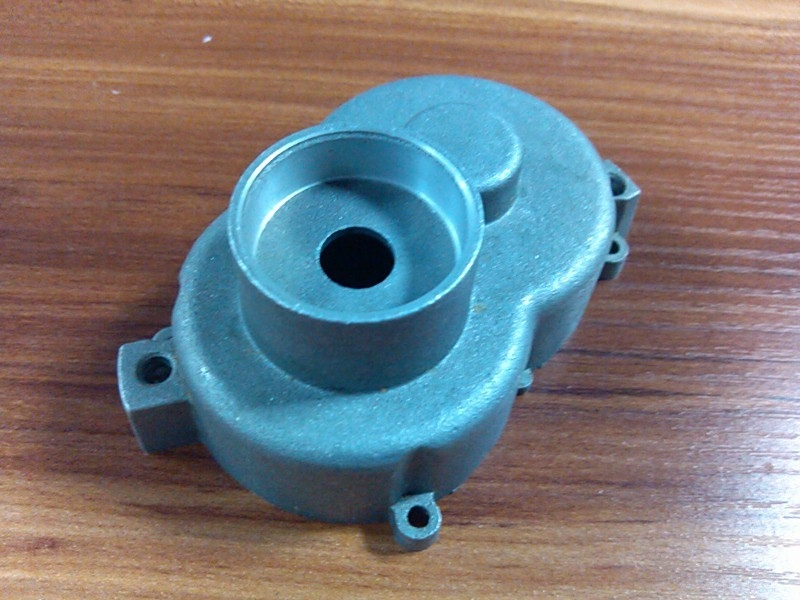

Aluminium Die Casting components , High Precision Gearbox Component Plating painting

Aluminium Die Casting components , High Precision Gearbox Component Plating painting

aluminium pressure die casting

custom die casting

Place of Origin:

Shenzhen city ,China

Brand Name:

ZXM

Certification:

ROHS, ISO 9001:2008

Model Number:

Zxm20090618

Contact Us

Request A Quote
Product Details
Name:
Gearbox Part
Business Type:
Factory
Certificate:
ISO 9001:2008
Material:
Aluminium Alloy
Process:
Die Cast > CNC Machining
Surface Treatment:
Plating Painting Or Customized
Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiation
Packaging Details
1PCS /plastic bag 10PCS /wooden box
Delivery Time
5-10 days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1, 000,PCS/week
Product Description





Aluminium Die Casting components , High Precision Gearbox Component Plating painting

Quick Detail:



Name

Gearbox part

Material

Aluminium alloy 6061-T6 etc

Process

Die casting >CNC milling >remove edge

Application

Every electrical equipment
machinery equipment

Feature

Cost effective ,light weight

Certification

ISO9001:2008





Description:



Material : Aluminum Alloy ASTM: A413, A356, A360, A380, A383…etc.

            JIS: ADC1, ADC3, ADC6, ADC10, ADC12…etc

Weight :   From 0.05kg to 15kg

Surface treatment : Sandblasting, Tumbling, Powder coating, painting, Chromatin (chemical film) and Polishing

Color :  RAL or Pantone color code



Applications:



Parts are applied for:



1) Industrial parts,

2) Machinery parts,

3) Construction parts,

4) Train accessories,

5) Insulator fittings,

6) Craft,

7) Agricultural machinery parts etc.

Aluminium Die Casting components , High Precision Gearbox Component Plating painting 0

Specifications :



Available materials Aluminum alloy ADC1, ADC6, ADC12, ADC13, ADC14, ADC15, A380, A360 zinc alloy #3,#5 ect copper or brass steel nickle
Processing forging/casting/milling/drilling/polishing/ball blasting/sand blasting/painting/anodizing/brushing/assembly/inspecting
Certificate ISO9001-2000; ISO/TS16949-2002
Equiments Die casting machine(88T-1650T)/mold making machine/CNC lathes/CNC engraving machnes/WEDM/EDM/CNC milling machine/shot-blasting machine/vibratory finishing machine/testing machine/X-ray diagnosic machine
Package Pallets/cartons/wooden case/wooden case/customized
Products range All kinds of aluminum alloy and zinc alloy die casting
Service OEM/ODM available



Our products :



Aluminium Die Casting components , High Precision Gearbox Component Plating painting 1

Physical properties comparison of different die casting alloy:



Physical properties comparison of different die casting alloy



Aluminum

Brass

Magnesium

Zinc

Tensile strength,psi*1000

47

55

34

41

Yield strength,psi*100(0.2 pct offset)

23

30

23



Shear strength,psi*1000

28

37

20

31

Fatigue strength,psi*1000

20

25

14

7

Elongaton,pct in 2 in.

3.5

15

3

10

Hardness (Brinell)

80

91

63

82

Specific gravity

2.71

8.3

1.8

6.6

Weight,lb/cu.in.

0.098

0.305

0.066

0.24

Melting ponint (liquid),°F

1100

1670

1105

728



Testing Machinery:



Machine Name

Quantity

Hardness tester

4

Height gauge

1

Universal tools microscope

1

Projector

1

Gear testing center

2

Metallographic microscope

1

Three coordinates measuring instrument(CMM)

1

Microcomputer controlling tester

1

Roughness tester

1



Competitive advantages:

  •  Cost effective;
  •  Adhere to specification;
  •  Fast delivery, quick response, ;
  •  Dimensions checked and quality guaranteed;
  •  Our comprehensive machining processes and knowledge of finishing, treatment requirements, tapping and insertion of heli-coils etc will end your arduous journey of looking for qualified suppliers for your custom machining needs. If you have difficulty to find good suppliers for hard to machine products, then we are your right choice.
