Place of Origin:
China
Brand Name:
Hentec
Certification:
ISO14001:2004, ISO9001:2000
Model Number:
HSL003
Contact Us
Descrition:
Hentec Industry Company is an aluminum extrusion manufacturer . For over a decade , we have focused exclusively on producing a wide range of aluminum products , including curtain wall aluminum profile ,aluminum solar panel frame ,industry profile ,and more . Our constant efforts and focus on product improvement have helped us to make our products light , stable , durable ,corrosion resistant ,and easy to install .
|
Item |

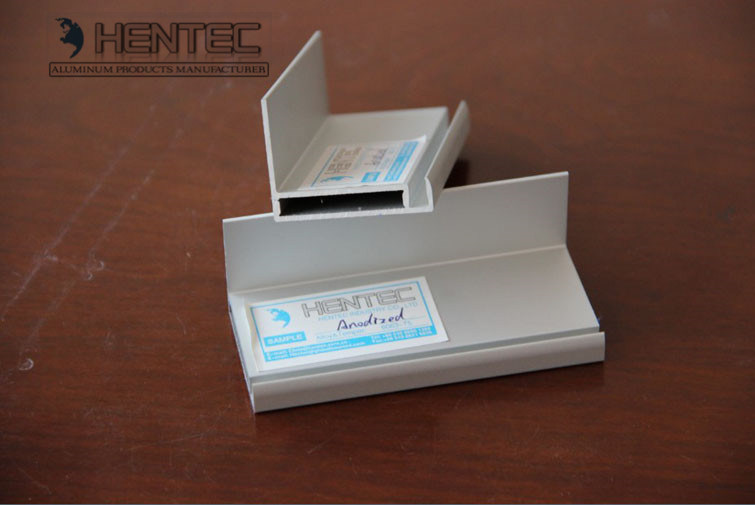

Sand Blast And Anodized Aluminum Solar Panel Frame , 6063 / 6061 / 6005
|
|
Alloy |
6061,6060,6063,6005 etc |
|
Temper |
T4, T5, T6 |
|
Surface |
Oxidation coloring,Powder coating, Anodizing(clear, satin, bronze, black, golden, silver, other multicolor), Electrophoresis,PVDF coating, Mill finish, polished, color coated,Wire drawing,Wood grain,etc |
|
Application |
Construction ; Solar roof mounting system ; Aerospace; Ship; Armarium; Industrial equipment,etc |
|
Technology Supports |
1, Engineering design |
|
Standard |
Meet the China national standard and Europe standard and American standard. |
|
Extrusion Tolerance |
GB/T5237-2000 (Chinese Standard) |
|
Machining Tolerance |
GB/T 1804-92 |
|
Standard for Anodizing |
GB5237.2-2004 |
|
Manufacturing Process |
Die designing→ Die making→ Smelting& alloying→ Extruding→ Cutting→ CNC machining→ Driling→ Tapping→ Surface treatment→ Welding→ Assembling→ Packing |
|
Packing method |
1. Standard packing: Eachprofile will be wrapped in the EPE sheet in order to protect the profiles' surfaces, kraft paper wrapped in bundles. |
Order,payment,terms,shipment
1, Minimum order: 500kg per trial order 1 piece of sample free of charge provided by approval and kept for future mass production.
2, Sample Lead Time: 25 working days(15 days for making the tool and 10 days making the samples. Before sending the samples to customer, samples should pass strict test in our lab. )Production Lead time: it depends on customers' order quantity ( 30 working days after deposit).
3, Payment: (Can negotiate with customers, our usual practices are as follow)
4, Tooling:100% prepaid by T/T.
5, Parts:30% upon order confirmation and balance before delivery by T/T
Applications:
Aluminum profile used in cars, trains machinery ,electronics, medical , solar panel frame and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
3. Surface Treatment of Sections
|
(Class) |
(μm),not diminish than |
acid-resistant |
abrasion resistance |
|||
|
(Min-average film |
(Min-part film |
CASS |
(S) |
|
||
|
(h) |
Class |
(f, g /μm) |
||||
|
AA10 |
10 |
8 |
16 |
≥9 |
≥50 |
≥300 |
|
AA15 |
15 |
12 |
32 |
≥9 |
≥75 |
≥300 |
|
AA20 |
20 |
16 |
56 |
≥9 |
≥100 |
≥300 |
|
AA25 |
25 |
20 |
72 |
≥9 |
≥125 |
≥300 |
Competitive Advantage:
1, The lower cost of labor and production resources, normally 15 - 30% cost will be saved if you buy from us instead of producing by yourself.
2, We have the abilities and related advanced machinery to produce all kinds of parts industry use.We can provide aluminum deep processing: cutting, punching, drilling, milling, bending and manufacturing, aluminum die casting
3, Wonderful surface treatment, we can meet customers required on surface.
4, We will offer our efficient service and good quality with reasonable prices.
5, We will be pleasure to make a long-term business relations with you.
FAQ For Saving Your Precious Time!
Q1: What's the thickness for anodizing?Can you do 15um?
A: Our normal thickness is about 10 um.Yes, we can do 15um and above.
Q2: What color you can do for powder coating?The thickness for powder coat?
A: We can do any color for powder coat as long as you can provide the color sample.Our normally powder coating thickness is 60-80um.
Q3: What color you can do for wood grain?
A: Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush Cherry, Bush Wood, Western Wood, Snow Gum, etc.If you need any other colors, we can do according to the color samples you provide.
Q4: How's the weather resistance for wood grain finish D1010?
A: (1). Powder:Akzo Noble Interpon D1010.
(2). Wood grain film:Italian Menphis.
(3). Standard complied:American AAMA Standard.2603
(4). UV test:1000 hours.
(5). Salt spraying test:1000 hours.
(6). Normal weather:10 years color guarantee.
Q5: What certification do you have?What's your standard?
A: We have ISO certification.Our standard is DIN, AAMA, AS/NZS, China GB.
Q6: What's the delivery time for samples and mass production?
A:(1). 2-3 weeks to make the new moulds and make free samples.
(2). 3-4 weeks after receipt of deposit and confirmation of the order.
