Medical Precision CNC Machining Parts Thin Bottom Plate , Cnc Milling Services

Medical Precision CNC Machining Parts Thin Bottom Plate , Cnc Milling Services

precision cnc machined components

precision cnc machined parts

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Product Description

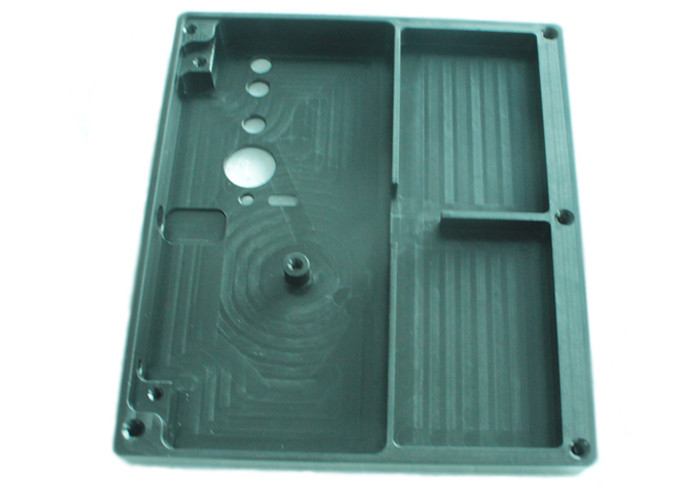

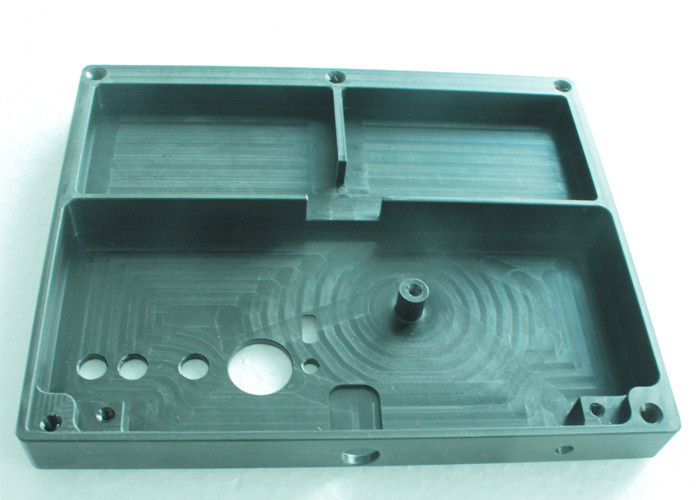

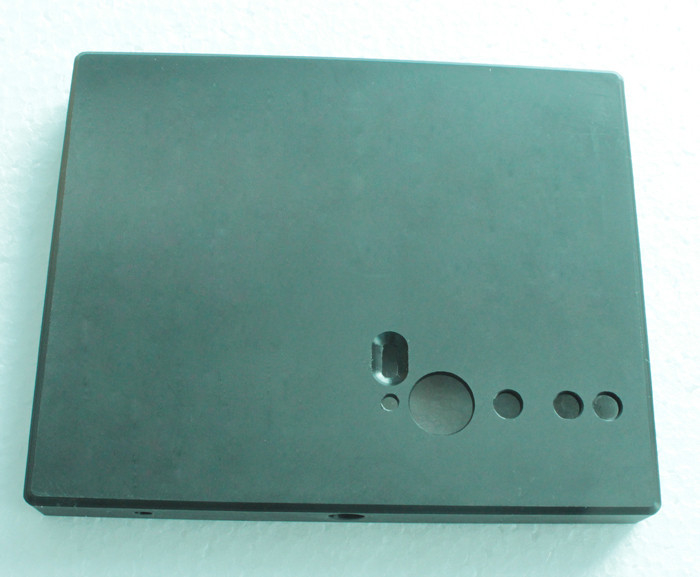

Medical Precision CNC Machining Parts Thin Bottom Plate , Cnc Milling Services





CNC Machining Parts Quick Detail:



Name

thin bottom plate

Application

camera assembly

Color

Nature

Feature







Certificate

ISO 9001





CNC Machining Parts Description:



High precision copper CNC machining Heat Spreader Diode for medical industry

Copper and Brass are commonly utilized materials for water and pneumatic fittings, electrical
connectors, and in some applications where heat removal (copper) is required.
Achieving a good surface finish on copper parts is challenging, as the material is very soft and is affected by swarf scratching. Brass on the other hand, is easy to machine, and can produce very good surface finishes straight off the machine tool.
Brass and copper do not usually undergo any form of post machining surface treatment; however, we have produced parts for clients that require nickel and gold flash plating for specialist applications.
The most common grades we machine are C36000 Free machining brass, and OFHC Copper for electrical applications.





Our Capacity:



1. Material: steel, copper, brass, aluminum, stainless steel, wooden, titanium, plastic and special material.

2. Equipment: CNC milling machine, CNC lathe, CNC high-speed engraving machine, wire cut etc.

3. Precision machining capability:

a) Machine’s rotating speed: 5,000rpm-30,000rpm;

b) Machining precision tolerance: 0.005-0.01mm,

C) Roughness value :< Ra0.2

d) Minimum cutting tool:0.1mm

4) Strict inspection instrument and ISO9001 control standard.
5) Professional OEM&ODM service.





Specifications



MATERIAL

Black Acetal

ANGULAR DIMENSION TOLERANCE

+/- 0.5

ROUGHNESS

Ra 1.6 µM

SURFACE TREATMENT

nature





About Us :



Metric Tool and Die Company was founded in the Southern province of China known as Guangdong. We are a leading manufacturer of high pressure die-casting mould, Cavity mould,aluminum alloy die casting,zinc alloy die casting,speed high precisoin machining  and other OEM products for supply. Our Senior Management teams experience spans to over 30 years in tooling and on a continual basis; we have developed a solid reputation for quality, reliability, innovation and on-time delivery. We pride ourselves on our ability to combine lean and efficient processes with high yield production, along with adding the versatility to adapt to each customers individual needs. Because of this we are constantly developing and implementing cost effective solutions, using our in-house improvement proposal schemes under the ISO standards and 5S Process.

Our modern facilities provide our customers with the most advanced high pressure die casting presses and equipment available. Molding presses range from 80 to 1250 ton. As a full service company we also offer a complete range of machining services including 3 & 5 axis CNC machining, EDM, wire-eroding, surface grinding ETC. We also have a full department dedicated to all natures of tool polishing including diamond and preparation for etching.
