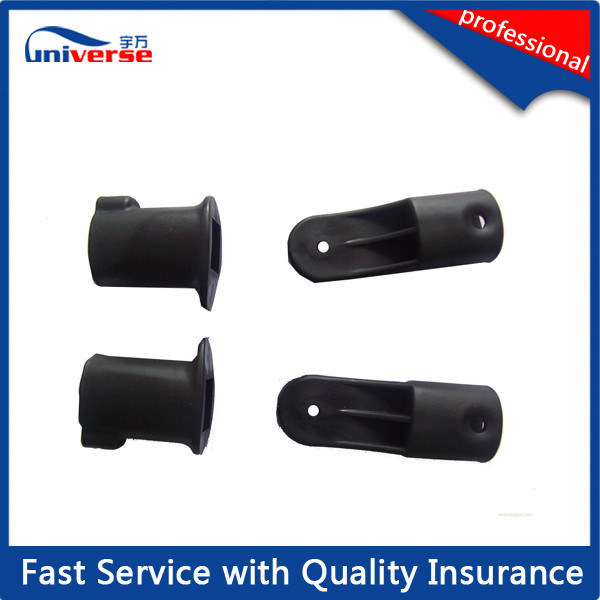

High Polish Plastic Injection Tooling For Household , Construction

High Polish Plastic Injection Tooling For Household , Construction

Cell Phone Case Mold

injection mold making

Place of Origin:

GuangDong , Mainland China

Brand Name:

YW

Certification:

SGS

Model Number:

CRM 01

Contact Us

Request A Quote
Product Details
Product:
Cold Runner Plastic Injection Mold
Material:
Steel
Mold Base:
LKM , HASCO , DME , MISUMI
Runner Type:
Cold Runner
Injection Machine:
90 , 120 ,180 ,270 T
Mold Size:
Custom
Parts:
Household , Construction , Production , Medical Facility
Mold Life:
500000 - 1000000 Shot
Design Software:
Solidworks,UG,AutoCAD
Design Ability:
Free Design Service
Lead Time:
Prompt
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 1000-25000 sets
Packaging Details
Wooden Box
Delivery Time
25-55 days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
10 sets per month
Product Description


High Polish Plastic Injection Tooling For Household , Construction



Specification:





Name



Plastic Injection Moulding



Plastic Material

Type:



ABS, ABS+PC, PP, PS, POM, PVC, TPE, TPU, Acetal,PA6.6,PA6,PA6.6+30GF,etc.



Mould Steel:



Saarstahl, Assab, AISI & JIS, DAIDOSTEEL, ALCOA,

S136, 1.2311, 1.2738, NAK80, 2344, 420, 2083



Mold Base:



Hasco standard, DME standard, LKM standard,PUNCHJINHONGOther



Cavity No.:



Single, Multi Cavity, Change Insert



Surface treatment:



Zinc plating, nickel plating, chromium plating, brass plating, decromet, etc.



Mould Texture



EDM,VDI 3400 Code,MOLD-TECH,Texturing



Cavity ,CoreFinishing



High Polishmirror faceGrade 3 DiamondPaper Finish,Stone Finish,



Type of Gate



Cold gate, Hot Runner Gate, Sprue GatePin Point GateSubmarine

Type Of Ejection

 Ejector PinEjector BladeStripper PlateEjector Sleeve

 LifterPneumatic Ejector.







Molding Making:



Material of steel
cavity and core use imported S136 stainless steel with fine polishing, high hardness to get mold's high precision

and good quality.



About gate
pin- valve gate ,pneumatic drive the nozzle pin simultaneous high speed open and close action. which can

 effectively control the injection hole open and close actions on each cavity. reliable seal function, smooth moving,

 low thermal expansion rate ,long using life and also saves electric energy.



About hot runner

hot runner system is designed and made by ourselves, it can achieve ideal and prompt heating effect for preform

production ,cavity with lower injection pressure to reduce wear and tear of mould parts.



Heat system
with double heating system,it has separate temperature control mode ,the heat bar are used to heat the mould

mainfold plate,small heaters supply the heating temperature for cavity nozzle continuously.



Cooling system
each parts including core ,cavity and valve gate has independently cooling system.





Production Process:



Sample/drawing


We need you detailed require clearly



Negotiation


Steel, cavities, price, delivery time, payment  terms, shipment.


Place order


After all confirmed-place order and usually need 50% deposit


R and D


We supply part and mould structure design


Machining


CNC,EDM, and so on


Testing


Testing mould to make sure everything is ok.


Samples


We send samples for customers checking


Balance


After all confirmation,the customer send the balance to us before shipment

Delivery


Deliver mould with Wooden case after customer confirm mould and samples,arrange shipment




System Highlights:



Reduces material wastage compared to conventional runner system molding
Allows for more cost-effective fully automatic molding
Complete control of material flow, allowing for molding of different parts in the same mold





SGS Certification:

High Polish Plastic Injection Tooling For Household , Construction 0


Advantages:

We should save you money through intelligent tooling design and efficient production runs.   We have advanced CMM Machine, CNC Machine, EDM Machine, Wire-Cutting and other normal machine, the injection machine from 20 ton to 1000 Ton. We can injection almost any kind of plastics such as ABS, PC, PBT, ABS-PC, PP, PMMA, PE, nylon, etc. The steel we use for manufacturing moulds are P-20, H-13(fully hardened mould with HRC 52-54, 420 SS (Stainless Steel),ETC or as specified by the customers.

Information of Univers Plastic Co., Ltd

Dongguan Universe Plastic provides high quality, high precision molds capable of producing over 50,000 pieces. Multiple cavity, complex molds are designed to fit customer requirements. Material selection is extremely important depending on the application. Universe Plastic's engineers will determine which alloy or combinations of alloys best fills the requirements, while maintaining low costs. Professional Software engineers help clients with SolidWorks designs of their molds to ensure structural integrity, correctness, and longevity of their design. Utilizing a modern, fully equipped faciltiy, holding to the highest standards of precision and safety. all aspects of Mold Tooling are performed, which results in short lead times with no loss of quality or performance.





Company Location:


Dongguan Universe Plastic Co., Ltd
The 4th street, Dongda Road, Sha-tou , Chang'an Town, Dongguan City, Guangdong Province, China.

TEL: 0086-769-81608488

FAX: 0086-769-81608133
